LMB-レーザーボール溶解機
LMB—Laser Ball Melting Machine

レーザーボール溶融機は、加熱源としてCO₂レーザーを使用しています。オプチカルレンズグループを通して、光ファイバーを均一かつ直接加熱することができ、光ファイバー溶融球のサイズを正確に制御します。一方、CCDカメラで自動測定を行う。CO₂加熱原理に基づき、コア径の大きい光ファイバーを含む様々な特殊光ファイバーを処理でき、光ファイバー球体溶融の様々な分野での応用に適しています。

LMB—Laser Ball Melting Machine

製品の特徴

  • CO₂レーザー溶接、精密な制御が可能
  • 複数の寸法でファイバー位置を動的に調整可能
  • 顧客の要求に応じてクランプ径をカスタマイズ可能
  • CCDカメラによる自動球面測定
  • 高精度駆動モーターとガイドレールシステム
モデル Laser Ball Melting Machine
波長 10.6 μm
パワー 40 W
光ファイバータイプ シングル/マルチ/大径ファイバーなど
クラッド径 80-1250 μm

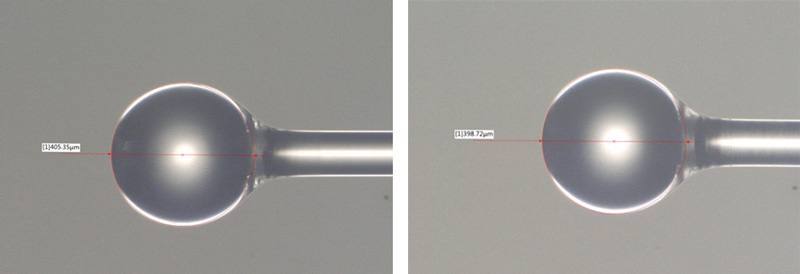

球径 自動識別と測定
光ファイバークランプ 繊維径に応じてカスタマイズ可能
