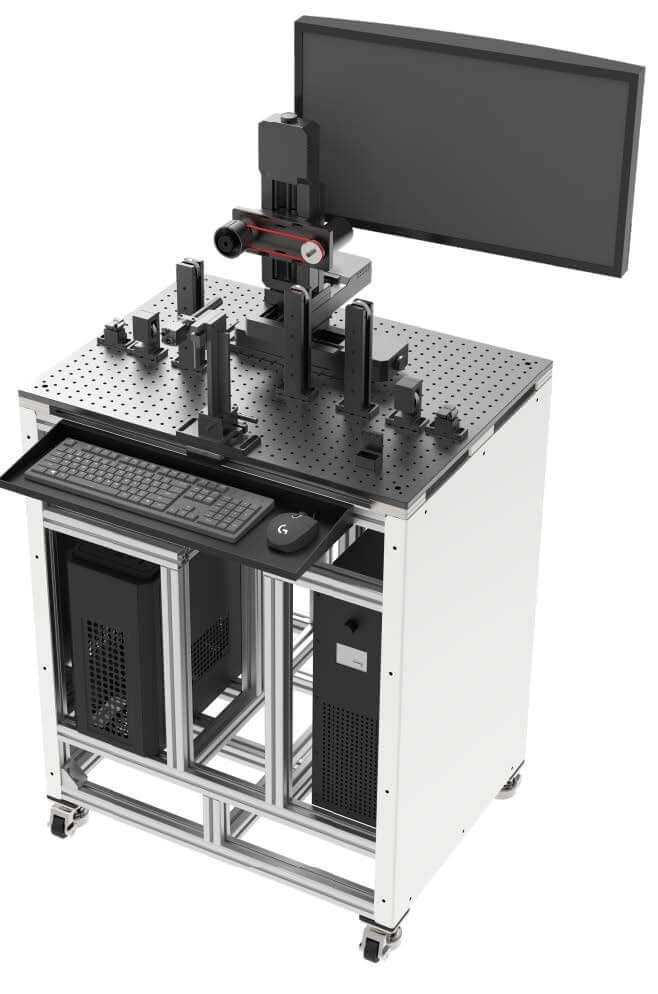

FSP-ファイバーサイド研磨機
FSP-Fiber Side Polishing Machine

FSP-Fiber Side Polishing Machine
FSP-光ファイバー側面研磨機は、主に光ファイバーの側面クラッドを研磨し、光ファイバーの光学特性を変更するために使用されます。 本装置は、高精度の位置決めと小型化された設計により、光ファイバーセンシングの分野で広く使用されています。本装置は、高精度位置決めビジョンシステムを内蔵しており、研磨された光ファイバの直径を正確に測定することができ、研磨面が平坦で滑らかで、再現性が高く、挿入損失が少ないことを保証します。

製品の特徴

  • 光ファイバーの研磨面は高精度で平坦
  • 高均質、高歩留まり、低挿入損失が特徴
  • 研磨深さ・長さの設定が可能

モデル FSP-01-G-S-800*600*1600-01
適用光ファイバ SMF-28eなどの一般的な光ファイバー
モータ種類 輸入モーター
視覚測定 500W 分解能
モータストローク(mm) 100
研削長(mm) 5-30
研削精度(μm) ±0.5
研削面 滑らかで平ら
機械寸法(mm) 1200*800*600
重量(kg) 40
