LAYERTECについて
Layertecは、光学コート素子および精密光学素子を開発する光学部品メーカーです。
様々なレーザー光源に対応したミラーや光学フィルター、エタロンなどを取り扱っています。
チャープミラーが有名です。
製品 – products
- フェムト秒レーザーオプティクス(チャープミラー等)
- ピコ秒レーザーオプティクス
- ナノ秒レーザーオプティクス
- CW、nsレーザーオプティクス
- 低損失レーザーオプティクス
- 金属ミラー
- 光学フィルター
- 広帯域ミラー
- アンコーティングオプティクス
カタログダウンロード
- Introduction & measurement tools
- Precision Optics
- Optical Coatings
- Common Laser Types
- Femtosecond Laser
- Selected Special Components
- Metallic Coatings
フェムト秒レーザーオプティクス(チャープミラー等)
– Standard Femtosecond laser optics
– Broadband Femtosecond laser optics
– Octave Spanning Femtosecond laser optics
– Silver mirrors for Femtosecond lasers
– High-power Femtosecond laser optics
– Components for the 2nd harmonic of the Ti:Sapphire lasers
– Components for the 3rd harmonic of the Ti:Sapphire lasers
– Components for the Higher harmonics of the Ti:Sapphire lasers
– Gires-Tournoi Interferometer (GTI) mirrors
– Optics for Femtosecond lasers in the 1100-1600nm range
製品の仕様
Standard Femtosecond laser optics
Coatings for a 120-150nm bandwidth in a range of 600-1000nm wavelengths.

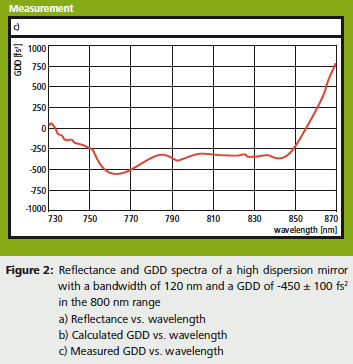

Very high reflectance mirrors (R>99.99%). High dispersion mirrors and pairs can reach negative GDD (Group Delay Dispersion) of some hundred fs2 and can be used for pulse compression.
Center wavelength, GDD and TOD (Third Order Dispersion) on demand. Positive as well as negative TOD can be achieved.
Spectral tolerance ± 1 % of center wavelength.

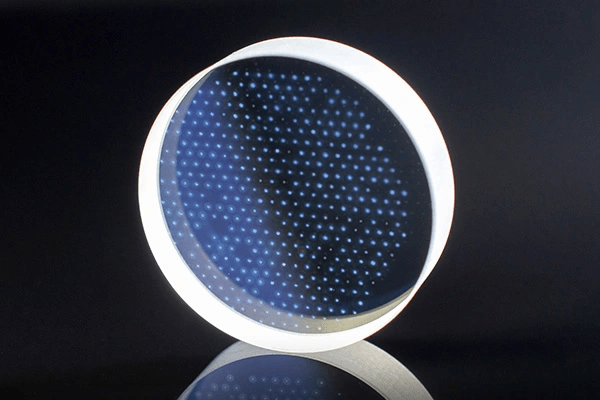

LIDT (Laser-Induced Damage Threshold) :
0.4 J / cm², 800 nm, 42 fs, 1 kHz, Ø 80 µm
2 J / cm², 800 nm, 70 fs, 10 Hz, Ø 700 µm
- Standard mirrors AOI=0°
- Pump mirrors AOI=0°

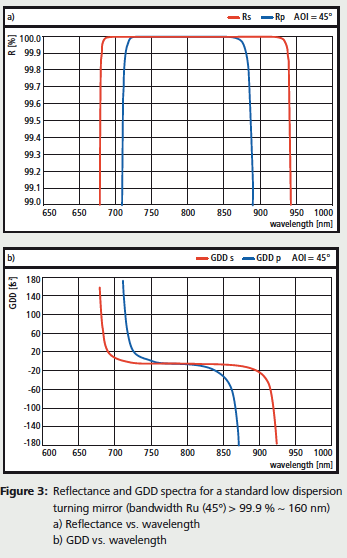

- Turning mirrors AOI=45°
- Output couplers AOI=0°
- Beam splitters for P-polarized light at AOI=45°
- Beam splitters for S-polarized light at AOI=45°
- Negative dispersion mirrors AOI=0°
- High dispersion mirrors AOI=0°
- High dispersion mirror pairs AOI=0°
- Mirrors with negative 3rd order dispersion
- Mirrors with positive 3rd order dispersion
- Mirror pairs with optimized 3rd order dispersion
- Mirrors with different TOD values
- Thin-film polarizers for AOI=55°
- Thin-film polarizers for AOI=65°
- Thin-film polarizers for AOI=80°
- Non-polarizing beam splitters for AOI=45°
- Antireflection coatings
Broadband Femtosecond laser optics
200-300nm bandwidth.
High dispersion and very high reflectance available (R>99.8~99.95%).
Center wavelength, bandwidth and GDD on demand (yet high GDD will result in narrow bandwidths).
Spectral tolerance ± 1 % of center wavelength.
LIDT:
≈ 0.1 J / cm², 800 nm, 150 fs

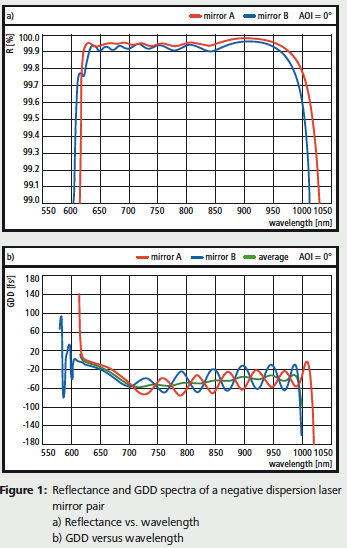

- Mirror pairs for AOI=0°
- Turning mirrors for S-polarized light at AOI=45°
- Turning mirrors for P-polarized light at AOI=45°
- Output couplers for AOI=0°
- Beam splitters for P-polarized light at AOI=45°
- Beam splitters for S-polarized light at AOI=45°
- Negative dispersion pump mirror pairs for AOI=45°
- Mirror pairs with positive average GDD
- Thin film polarizers for AOI=70°
- High negative dispersion mirror pairs for AOI=0°
- Mirrors pairs with optimized 3rd order dispersion for AOI=0°
Octave Spanning Femtosecond laser optics
Generally for 1 octave range (550-110nm for ex.), available for other ranges.
Center wavelength, bandwidth and GDD on demand (yet high GDD will result in narrow bandwidths).
Spectral tolerance ± 1 % of center wavelength.
LIDT:
≈ 0.1 J / cm², 800 nm, 150 fs
- Negative dispersion laser mirror pairs for AOI=0°
- Negative dispersion pump mirror pairs for AOI=0°
- Negative dispersion turning mirror pairs for P-polarized light at AOI=45°
- Output couplers for AOI=0°
- Beam splitters for P-polarized light at AOI=45°
- Beam splitters for S-polarized light at AOI=45°
Silver mirrors for Femtosecond lasers
High reflectance in VIS and IR, which can be further enhanced using additional dielectric coatings.
Broad band at GDD~o available.
Very low scattering (~30ppm).
Standard sizes: Ø =12.7 mm / 25 mm / 50 mm ; plane, plano-concave or plano-convexe with typical radii range of 10-10000mm. Radii, other sizes… on request.
LIDT:
- Silver mirrors optimized for femtosecond laser applications
- Silver mirrors with enhanced reflectance
High-power Femtosecond laser optics
550-1100nm typical bandwidth.
- Overview about laser induced damage thresholds of femtosecond laser optics
- Metallic High power mirrors
- GDD of High power femtosecond laser mirror
Components for the 2nd harmonic of the Ti:Sapphire lasers
Very high reflectance (R>99.9%).
Center wavelength, bandwidth and GDD on request.
Spectral tolerance ± 1 % of center wavelength.
- Dual wavelength mirrors
- Separators for the 2nd harmonic from the fundamental for AOI=45°
Reflectance R>99.9% / Transmittance T>95% for both P and S-polarizations.
- Negative dispersion mirror pair for the 400nm spectral range at AOI=0°
Prototype production on request.
Components for the 3rd harmonic of the Ti:Sapphire lasers
- Dual wavelength turning mirrors for AOI=45°
- Triple wavelength turning mirrors for AOI=45°
- Broadband low dispersion mirrors for AOI=45°
- Separators for the 3rd harmonic from the 2nd harmonic and the fundamental wave for AOI=45°
- Negative dispersion mirror pair for AOI=0°
Components for the Higher harmonics of the Ti:Sapphire lasers
Fluoride layer on CaF2 are used for the 125-215nm band, and oxides are used for the others.
- Turning mirrors and separators for the 4th harmonic at AOI=45°
- Components for the 5th harmonic at AOI=45°
- Components for the 6th harmonic at AOI=45°
- Bandwidth of the reflectance and low-GDD range of standard components
- Broadband reflectors for the 200-250nm wavelength range
Gires-Tournoi Interferometer (GTI) mirrors
Gires-Tournois- Interferometer (GTI) mirrors are used for pulse compression in short pulse lasers such as Yb:YAG- or Yb:KGW-lasers. LAYERTEC also offers GTI mirrors for the Ti:Sapphire wavelength range and for other femtosecond lasers in the NIR spectral range. Compared to prism compressors, GTI mirrors reduce the intra-cavity losses resulting in higher output power of the laser.
Very high reflectance.
Center wavelength, bandwidth and GDD on request.
Spectral tolerance ± 1 % of center wavelength.
LIDT:
≈ 0.1 J / cm², 800 nm, 150 fs.
- GTI mirrors for Yb:YAG and Yb:KGW lasers
- Optical losses of GTI mirrors
- Coating homogeneity and reproducibility of GTI mirrors
Optics for Femtosecond lasers in the 1100-1600nm range
Very high reflectance (R>99.8~99.99%).
Center wavelength, bandwidth and GDD on request.
Spectral tolerance ± 1 % of center wavelength.
LIDT:
~ 0.1 J / cm²
- Negative dispersion laser and pump mirrors for AOI=0°
- GTI mirrors for AOI=0°
- Broadband negative dispersion mirror pairs for AOI=0°
- Broadband negative dispersion turning mirrors for AOI=45°
- Separators / Combiners with negative GDD for AOI= 45°
