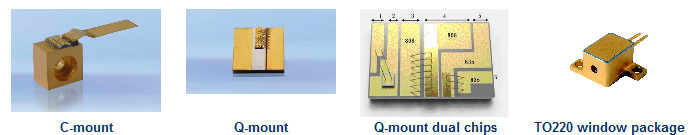

Diode laser mount
| 波長 | 出力 | エミッタサイズ | マウント・パッケージ |
|---|---|---|---|
| 793 nm | 3 W | 100 µm | C, Q, TO220 |
| 808 nm | 1.0 W/ 3.0 W | 100 µm | C, Q, TO220 |
| 5.0 W/ 8.0 W | 200 µm | ||
| 808 nm+ 650 nm | 3.0 W+ 0.2 W | 100 µm+ 150 µm | Q |
| 830 nm | 1.0 W / 3.0 W | 100 µm | C, Q, TO220 |
| 915nm | 4.0 W / 5.0 W/ 8.0 W / 10.0 W | 100 µm | C, Q, TO220 |
| 976 nm | 4.0 W / 5.0 W / 8.0 W / 10.0 W | 100 µm | C, Q, TO220 |
| 1064 nm | 4.0 W / 5.0 W / 8.0 W | 100 µm | C, Q, TO220 |
| 1470 nm | 2.0 W / 4.0 W | 100 µm | C, Q, TO220 |
| 1550 nm | 2 W | 100 µm | C, Q, TO220 |
Free Space Laser Diode
| 波長 | 許容差(± nm) | 出力 | タイプ | パッケージ | モデル |
|---|---|---|---|---|---|
| 405 nm | 5 nm | 20 mW | SM | TO-18 | SLD-405-20 |
| 450 nm | 5 nm | 1400 mW | MM | TO-18 | MLD-450-1400 |
| 637 nm | 5 nm | 120 mW- 170 mW | SM | TO-38 | SLD-637-120 |
| TO-18 | SLD-637-170 | ||||
| 640 nm | 5 nm | 150 mW | SM | TO-18 | SLD-640-150 |
| 658 nm | 8 nm | 200 mW | SM | TO-18 | SLD-658-200 |
| 730 nm | 10 nm | 40 mW | SM | TO-18 | SLD-730-40 |
| 785 nm | 5 nm | 150 mW | SM | TO-5 | SLD-785-150 |
| 808 nm | 3 nm | 200 mW | MM | TO-18 | MLD-808-200 |
| 300 mW | TO-18 | MLD-808-300 | |||
| 500 mW | TO-5 | MLD-808-500 | |||
| 850 nm | 5 nm | 50 mW | SM | TO-18 | SLD-850-50 |
| 980 nm | 10 nm | 50 mW | MM | TO-18 | MLD-980-50 |
| 250 mW | TO-5 | MLD-980-250 | |||
| 500 mW | TO-5 | MLD-980-500 | |||
| 1064 nm | 5 nm | 300 mW | SM | TO-5 | SLD-1064-300 |
| 1310 nm | 5 nm | 20 mW | SM | TO-18 | SLD-1310-20 |
| 1550 nm | 5 nm | 20 mW | SM | TO-18 | SLD-1550-20 |
Diode Laser System
| 波長 | 出力 | ビーム | 備考 | データシート | |
|---|---|---|---|---|---|
| MDL-III-375 MLL-III-375 |
375 nm | 1 mW– 150mW | – – |
– low noise |
|
| MDL-III-405 MLL-III-405 |
405 nm | 1 mW– 400 mW | – – |
– low noise |
|
| MDL-III-442 MLL-III-442 |
442 nm | 1 mW– 50 mW | – – |
– low noise |
|
| MDL-III-447 MDL-F-447 MLL-III-447 MLL-F-447 |
447 nm | 1 mW– 1000 mW 1000 mW– 2000mW 1 mW — 1000 mW 1000 mW– 2000 mW |
– – |
– – low noise <1% low noise <1% |
|
| MDL-III-450 MLL-III-450 |
450 nm | 1 mW– 1000 mW | – – |
– low noise |
|
| MDL-III-454 | 454nm | 1 mW– 50 mW | – | – | |
| MDL-III-488L MDL-III-488 |
488 nm | 10 mW– 50 mW | – | – |
|
| MDL-III-520L TEM-F-520 MDL-III-520 |
520 nm | 50 mW 20 mW 100 mW– 1000 mW |
TEM00 | – | |
| MRL-I-635 MRL-III-635 MLL-III-635 MRL-III-635R MRL-III-FS-635 |
635 nm | 1 mW– 500 mW 1 mW– 500 mW 1 mW– 500 mW 1 mW– 150 mW 600 mW — 1000 mW |
– – – round – |
low cost – low noise – – |
|
| MRL-III-640 MLL-III-640 MRL-III-640H |
640 nm | 1 mW– 200 mW 1 mW– 200 mW 200 mW– 300 mW |
– – – |
– low noise – |
|
| MRL-I-655 MRL-III-655 MLL-III-655 MRL-III-655R MRL-III-FS-655 |
655 nm | 1 mW– 1000 mW 1 mW– 1000 mW 1 mW– 1000 mW 1 mW — 200 mW |
– – – round – |
low cost – low noise – – |
|
| MDL-III-808 MLL-III-808 MDL-III-808R |
808nm | 1 mW– 2500mW 1 mW– 2500 mW 1 mW– 500 mW |
– – round |
– low noise – |
|
| MDL-III-785 MLL-III-785 MDL-III-785R |
785 nm | 1 mW– 2000 mW 1 mW– 2000 mW 1 mW– 300 mW |
– – round |
– low noise – |
|
| MDL-III-830 MDL-III-830R MDL-III-830H |
830 nm | 1 mW– 120 mW 1 mW– 500 mW 1 mW– 2000 mW |
near TEM00 round – |
– – – |
|
| MDL-III-845 MLL-III-845 |
845 nm | 1 mW– 30 mW | – – |
– low noise |
|
| MDL-III-852 MDL-III-852H MLL-III-852 |
852 nm | 1 mW– 120 mW 1 mW– 2000 mW 1 mW– 2000 mW |
near TEM00 – – |
– low noise |
|
| MDL-III-885 MDL-III-885R MLL-III-852 |
885 nm | 1 mW– 2000 mW 1 mW– 400 mW 1 mW– 1500 mW |
– round – |
– – low noise |
|
| MDL-III-915 MDL-III-915R MDL-III-915H |
915 nm | 1 mW– 300 mW 1 mW– 400 mW 1 mW– 1000 mW |
near TEM00 round rectangle |
– – – |
|
| MDL-III-940 MDL-III-940R MDL-III-940H |
940 nm | 1 mW– 300 mW 1 mW– 400 mW 1 mW– 1000 mW |
near TEM00 round – |
– – – |
|
| MDL-III-965 MDL-III-965R |
965 nm | 1 mW– 2000 mW 1 mW– 500 mW |
– round |
– – |
|
| MDL-III-980 MDL-III-980R |
980 nm | 1 mW– 2000 mW 1 mW– 500 mW |
– round |
– – |
|
Fiber-coupled diode laser
Wavelength Stabilized Diode Laser
| 波長 | 出力 | ファイバーコア径 | NA | アクセサリ (optional) |
モデル |
|---|---|---|---|---|---|
| 808±0.5 nm | 3.0 W | 105 µm | 0.22 | Photodiode
Thermistor |
M808±0.5-3.5-F105/22-R1 |
| 878.6±0.5 nm | 30 W | 200 µm | 0.22 | M878.6±0.5-30-D200/22 | |
| 40 W | M878.6±0.5-40-D200/22 | ||||
| 70 W | M878.6±0.5-70-D200/22 | ||||
| 90 W | M878.6±0.5-90-D200/22 | ||||
| 120 W | M878.6±0.5-120-D200/22 | ||||
| 976±0.5 nm | 9 W | 105 µm | 0.22 | M976±0.5-9-F105/22-T1 | |
| 14 W | M976±0.5-14-F105/22-T6 | ||||
| 20 W | M976±0.5-20-F105/22-T6 | ||||
| 27 W | M976±0.5-27-F105/22-T4S | ||||
| 60 W | M976±0.5-60-F105/22-CK | ||||
| 100 W | M976±0.5-100-F105/22-D1 | ||||
| 140 W | M976±0.5-140-F105/22-DK | ||||
| 200 W | 200 µm | M976±0.5-200-F200/22-DK | |||
| 981±0.5 nm | 7 W | 105 µm | 0.22 | M981±0.5-7-F105/22-T1 | |
| 27 W | M981±0.5-27-F105/22-T4S | ||||
| 55 W | M981±0.5-55-F105/22-C1 | ||||
| 100 W | M981±0.5-100-F105/22-D1 |
Non-Wavelength Stabilized Diode Laser
| 波長 nm | 出力 W | ファイバーコア径 μm | NA | アクセサリ (optional) |
モデル |
|---|---|---|---|---|---|
| 793±3 | 8 | 105 | 0.22 | PhotodiodeThermistor | M793±3-8-F105/22-T4R |
| 16 | M793±3-16-F105/22-CK | ||||
| 30 | M793±3-30-F105/22-D1 | ||||
| 40 | M793±3-40-F105/22-DK | ||||
| 50 | M793±3-50-F105/22-DK | ||||
| 808±3/10 | 4.0 | 105 | 0.22 | Red AimingPhotodiodeThermistor | M808±3-4.0-F105/22 |
| 7 | M808±3-7-F105/22 | ||||
| 14 | 400 | M808±10-14-F400/22 | |||
| 20 | M808±10-20-F400/22 | ||||
| 30 | M808±10-30-F400/22 | ||||
| 40 | 200 | M808±10-40-F200/22 | |||
| 50 | M808±10-50-F200/22 | ||||
| 100 | PhotodiodeThermistor | M808±3-100-F200/22 | |||
| 120 | 400 | M808±3-120-F400/22 | |||
| 915±10 | 10 | 105 | 0.22 | PhotodiodeThermistor | M915±10-10-F105/22-T1 |
| 30 | M915±10-30-F105/22-T3 | ||||
| 35 | M915±10-35-F105/22-T4R | ||||
| 70 | M915±10-70-F105/22-CK | ||||
| 120 | M915±10-120-F105/22-D1 | ||||
| 150 | M915±10-150-F105/22-DK | ||||
| 180 | 135 | M915±10-180-F135/22-C6 | |||
| 260 | 200 | M915±10-260-F200/22-C2A | |||
| 976±3(980±10)* | 9 | 105 | 0.22 | PhotodiodeThermistor | M976±3-9-F105/22-T1 |
| 20 | M976±3-20-F105/22-T2 | ||||
| 30 | M976±3-30-F105/22-T3 | ||||
| 40 | M976±3-40-F105/22-T4R | ||||
| 70 | M976±3-70-F105/22-CK | ||||
| 110 | M976±3-110-F105/22-D1 | ||||
| 150 | M976±3-150-F105/22-DK | ||||
| 200 | 200 | M976±3-210-F200/22-DK | |||
| 250 | M976±3-250-F200/22-DK | ||||
| 300 | M976±3-300-F200/22-SK2 | ||||
| 1470±10 | 5 | 105 | 0.22 | ThermistorRed aiming | M1470±10-5-F105/22-G4 |
| 10 | M1470±10-10-F105/22-G4 | ||||
| 15 | 200 | 0.22 | M1470±10-15-F200/22-C5 |
ターンキーダイオードレーザー
 |
特徴：
– 内蔵電源および冷却部 |
 |
特徴：
– 統合された電源と水冷プレート |

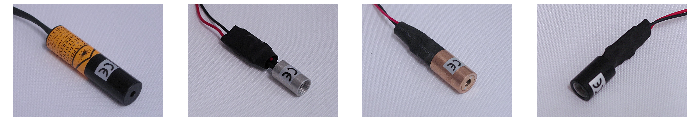

Laser Diode Module
| Blue laser diode module | |
|---|---|
| Wavelength | 405 nm, 450 nm |
| Output power | 1 mW – 150 mW@405 nm, 1 mW – 50 mW@450 nm |
| Operating voltage | 6V DC |
| Beam divergence | <1mrad dot |
| Beam minimum diameter | <=1mm at 1m |
| Line thickness | <=0.5 mm at 0.5m, <=1mm at 2m, <=2mm at 6m |
| Curvature (line/crossline) | <=0.5 mm at 5m |
| Verticality (crossline) | <= ±0.5° |
| Fan angle (line) | 10° – 130° |
| Dimension | D:12 mm, L:20 mm dot or customized |
| Operating temperature | 15° – 30°C |
| Storage temperature | -40° – 80° |
| Laser classification | 1, 1M, 2, 2M, 3R, 3B |
| Green DPSS laser module | |
|---|---|
| Wavelength | 532 nm |
| Output power | 1 mW – 150 mW |
| Operating voltage | 3V or 5V DC |
| Beam divergence | <=1.5mrad |
| Minimum beam diameter | <=1 mm a t1m |
| Line thickness | <=0.5 mm at 0.5m, <=1mm at 2m, <=2mm at 6m |
| Curvature (line/crossline) | <=0.5mm at 5m |
| Verticality (crossline) | <= ±0.5° |
| Fan angle (line) | 10° – 130° |
| Dimension | D: 12mm, L: 35mm or customized |
| Operating temperature | 10° – 30°C |
| Storage temperature | -40° – 80° |
| Laser classification | 1, 1M, 2, 2M, 3R, 3B |
| Green laser diode module | |
|---|---|
| Wavelength | 520±10 nm |
| Output power | 1 mW – 30 mW |
| Operating voltage | 2.1 – 12V DC |
| Beam divergence | 0.2 -2mrad |
| Minimum beam diameter | <=1mm at 1m |
| Line thickness | <=0.5mm at 0.5m, <=1mm at 2m, <=2mm at 6m |
| Curvature (line/crossline) | <=0.5mm at 5m |
| Verticality (crossline) | <= ±0.5° |
| Fan angle (line) | 5° – 180° |
| Operating temperature | -10° – 60°C |
| Storage temperature | -20° – 70° |
| Laser classification | 1, 1M, 2, 2M, 3R, 3B |
| Red laser diode module | |
|---|---|
| Wavelength | 635 nm, 650-660 nm |
| Output power | 0.4 – 16mW@635nm, 0.4 – 120mW@650-660nm |
| Operating voltage | 3V or 5V DC |
| Beam divergence | <=0.3mrad dot |
| Minimum beam diameter | <=1mm at 1m |
| Line thickness | <=0.5mm at 0.5m, <=1mm at 2m, <=2mm at 6m |
| Curvature (line/crossline) | <=0.5mm at 5m |
| Verticality (crossline) | <= ±0.5° |
| Fan angle (line) | 10° – 130° |
| Dimension | D: 6.5mm – 26mm, L: 11mm – 110mm or customized |
| Operating temperature | 10° – 40°C |
| Storage temperature | -40° – 80° |
| Laser classification | 1, 1M, 2, 2M, 3R, 3B |
