Nanoplusについて
NanoplusはDFB及びFabry Perotレーザに注力するメーカーです。
レーザー波長は近赤外から中赤外(760 nm 〜 14000 nm)まで幅広く対応しています。
同社製品は高精度の可変半導体レーザー分野で、環境、自動車、航空宇宙、生命工学向け等に用いられています。
RoHSに準拠しています。
DFBラインナップ
DFBの波長 | レーザーダイオード技術 | 光出力 Pcw(mW)* | 線幅 (MHz) |
---|---|---|---|
760-830 nm | DFB laser diodes | 5 | <3 |
830-920 nm | DFB laser diodes | 10 | <3 |
920-1100 nm | DFB laser diodes | 20 | <3 |
1100-1300 nm | DFB laser diodes | 20 | <3 |
1300-1650 nm | DFB laser diodes | 5 | <3 |
1650-1850 nm | DFB laser diodes | 5 | <3 |
1850-2200 nm | DFB laser diodes | 3 | <3 |
2200-2600 nm | DFB laser diodes | 3 | <3 |
2600-2900 nm | DFB laser diodes | 2 | <3 |
2800-4000 nm | DFB Interband Cascade Lasers | 10 | <3 |
4000-4600 nm | DFB Interband Cascade Lasers | 5 | <3 |
4600-5300 nm | DFB Interband Cascade Lasers | 3 | <3 |
5300-5800 nm | DFB Interband Cascade Lasers(特注品・要問合せ) | 1 | <3 |
5800-6500 nm | DFB Interband Cascade Lasers | 1 | <3 |
6000-14000 nm | DFB Quantum Cascade Lasers | 3 | – |
分散フィードバックレーザーダイオード
Distributed Feedback Lasers: 760 nm – 830 nm
主な機能
- モノモード
- 連続波
- 室温
- 調整可能
- カスタム波長
技術データ
parameters (T = 25 °C) | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength (at Top, Iop) | λop | nm | 0.1 nm | ||
optical output power (at λop) | Pop | mW | 5 | ||
operating current | Iop | mA | 30 | ||
operating voltage | Vop | V | 3 | ||
threshold current | Ith | mA | 5 | 15 | 30 |
side mode suppression ratio | SMSR | dB | > 35 | ||
current tuning coefficient | CI | nm / mA | 0.01 | 0.02 | 0.025 |
temperature tuning coefficient | CT | nm / K | 0.04 | 0.05 | 0.07 |
operating chip temperature | Top | °C | 20 | 25 | 50 |
operating case temperature* | TC | °C | -20 | 25 | 50 |
storage temperature* | TS | °C | -40 | 20 | 80 |
* 結露しないこと
Distributed Feedback Lasers: 830 nm – 920 nm
主な機能
- モノモード
- 連続波
- 室温
- 調整可能
- カスタム波長
技術データ
parameters (T = 25 °C) | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength (at Top, Iop) | λop | nm | 0.1 nm | ||
optical output power (at λop) | Pop | mW | 10 | ||
operating current | Iop | mA | 30 | ||
operating voltage | Vop | V | 3 | ||
threshold current | Ith | mA | 15 | 20 | 30 |
side mode suppression ratio | SMSR | dB | > 35 | ||
current tuning coefficient | CI | nm / mA | 0.004 | 0.007 | 0.015 |
temperature tuning coefficient | CT | nm / K | 0.05 | 0.07 | 0.15 |
operating chip temperature | Top | °C | 20 | 25 | 50 |
operating case temperature* | TC | °C | -20 | 25 | 50 |
storage temperature* | TS | °C | -40 | 20 | 80 |
* 結露しないこと
Distributed Feedback Lasers: 920 nm – 1100 nm
主な機能
- モノモード
- 連続波
- 室温
- 調整可能
- カスタム波長
技術データ
parameters (T = 25 °C) | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength (at Top, Iop) | λop | nm | 0.1 nm | ||
optical output power (at λop) | Pop | mW | 20 | ||
operating current | Iop | mA | 50 | ||
operating voltage | Vop | V | 3 | ||
threshold current | Ith | mA | 15 | 20 | 25 |
side mode suppression ratio | SMSR | dB | > 35 | ||
current tuning coefficient | CI | nm / mA | 0.01 | 0.02 | 0.025 |
temperature tuning coefficient | CT | nm / K | 0.07 | 0.08 | 0.09 |
operating chip temperature | Top | °C | 20 | 25 | 50 |
operating case temperature* | TC | °C | -20 | 25 | 50 |
storage temperature* | TS | °C | -40 | 20 | 80 |
* 結露しないこと
Distributed Feedback Lasers: 1100 nm – 1300 nm
主な機能
- モノモード
- 連続波
- 室温
- 調整可能
- カスタム波長
技術データ
parameters (T = 25 °C) | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength (at Top, Iop) | λop | nm | 0.1 nm | ||
optical output power (at λop) | Pop | mW | 20 | ||
operating current | Iop | mA | 70 | ||
operating voltage | Vop | V | 2 | ||
threshold current | Ith | mA | 12 | 15 | 25 |
side mode suppression ratio | SMSR | dB | > 35 | ||
current tuning coefficient | CI | nm / mA | 0.007 | 0.01 | 0.02 |
temperature tuning coefficient | CT | nm / K | 0.07 | 0.09 | 0.1 |
operating chip temperature | Top | °C | 20 | 25 | 50 |
operating case temperature* | TC | °C | -20 | 25 | 50 |
storage temperature* | TS | °C | -40 | 20 | 80 |
* 結露しないこと
Distributed Feedback Lasers: 1300 nm – 1650 nm
主な機能
- モノモード
- 連続波
- 室温
- 調整可能
- カスタム波長
技術データ
parameters (T = 25 °C) | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength (at Top, Iop) | λop | nm | 0.1 nm | ||
optical output power (at λop) | Pop | mW | 5 | ||
operating current | Iop | mA | 70 | ||
operating voltage | Vop | V | 2 | ||
threshold current | Ith | mA | 10 | 30 | 55 |
side mode suppression ratio | SMSR | dB | > 35 | ||
current tuning coefficient | CI | nm / mA | 0.01 | 0.02 | 0.03 |
temperature tuning coefficient | CT | nm / K | 0.07 | 0.1 | 0.14 |
operating chip temperature | Top | °C | 20 | 25 | 50 |
operating case temperature* | TC | °C | -20 | 25 | 50 |
storage temperature* | TS | °C | -40 | 20 | 80 |
* 結露しないこと
Distributed Feedback Lasers: 1650 nm – 1850 nm
主な機能
- モノモード
- 連続波
- 室温
- 調整可能
- カスタム波長
技術データ
parameters (T = 25 °C) | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength (at Top, Iop) | λop | nm | 0.1 nm | ||
optical output power (at λop) | Pop | mW | 5 | ||
operating current | Iop | mA | 70 | ||
operating voltage | Vop | V | 2 | ||
threshold current | Ith | mA | 10 | 35 | 65 |
side mode suppression ratio | SMSR | dB | > 35 | ||
current tuning coefficient | CI | nm / mA | 0.008 | 0.02 | 0.03 |
temperature tuning coefficient | CT | nm / K | 0.07 | 0.1 | 0.14 |
operating chip temperature | Top | °C | 20 | 25 | 50 |
operating case temperature* | TC | °C | -20 | 25 | 50 |
storage temperature* | TS | °C | -40 | 20 | 80 |
* 結露しないこと
Distributed Feedback Lasers: 1850 nm – 2200 nm
主な機能
- モノモード
- 連続波
- 室温
- 調整可能
- カスタム波長
技術データ
parameters (T = 25 °C) | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength (at Top, Iop) | λop | nm | 0.1 nm | ||
optical output power (at λop) | Pop | mW | 3 | ||
operating current | Iop | mA | 100 | ||
operating voltage | Vop | V | 2 | ||
threshold current | Ith | mA | 5 | 25 | 65 |
side mode suppression ratio | SMSR | dB | > 35 | ||
current tuning coefficient | CI | nm / mA | 0.01 | 0.02 | 0.05 |
temperature tuning coefficient | CT | nm / K | 0.16 | 0.2 | 0.23 |
operating chip temperature | Top | °C | 20 | 25 | 50 |
operating case temperature* | TC | °C | -20 | 25 | 50 |
storage temperature* | TS | °C | -40 | 20 | 80 |
* 結露しないこと
Distributed Feedback Lasers: 2200 nm – 2600 nm
主な機能
- モノモード
- 連続波
- 室温
- 調整可能
- カスタム波長
技術データ
parameters (T = 25 °C) | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength (at Top, Iop) | λop | nm | 0.1 nm | ||
optical output power (at λop) | Pop | mW | 3 | ||
operating current | Iop | mA | 100 | ||
operating voltage | Vop | V | 2.3 | ||
threshold current | Ith | mA | 5 | 30 | 50 |
side mode suppression ratio | SMSR | dB | > 35 | ||
current tuning coefficient | CI | nm / mA | 0.01 | 0.02 | 0.05 |
temperature tuning coefficient | CT | nm / K | 0.18 | 0.22 | 0.25 |
operating chip temperature | Top | °C | 20 | 25 | 50 |
operating case temperature* | TC | °C | -20 | 25 | 50 |
storage temperature* | TS | °C | -40 | 20 | 80 |
* 結露しないこと
Distributed Feedback Lasers: 2600 nm – 2900 nm
主な機能
- モノモード
- 連続波
- 室温
- 調整可能
- カスタム波長
技術データ
parameters (T = 25 °C) | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength (at Top, Iop) | λop | nm | 0.1 nm | ||
optical output power (at λop) | Pop | mW | 2 | ||
operating current | Iop | mA | 100 | ||
operating voltage | Vop | V | 2.3 | ||
threshold current | Ith | mA | 30 | 50 | 80 |
side mode suppression ratio | SMSR | dB | > 35 | ||
current tuning coefficient | CI | nm / mA | 0.01 | 0.02 | 0.05 |
temperature tuning coefficient | CT | nm / K | 0.15 | 0.2 | 0.28 |
operating chip temperature | Top | °C | 20 | 25 | 50 |
operating case temperature* | TC | °C | -20 | 25 | 50 |
storage temperature* | TS | °C | -40 | 20 | 80 |
* 結露しないこと
分散フィードバックバンド間カスケードレーザー
Distributed Feedback Lasers: 2800 nm – 4000 nm
主な機能
- モノモード
- 連続波
- 室温
- 低消費電力
- 調整可能
- カスタム波長
技術データ
parameters | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength (at Top, Iop) | λop | nm | 0.1 nm | ||
optical output power (at λop) | Pop | mW | 10 | ||
operating current | Iop | mA | 120 | ||
operating voltage | Vop | V | 5 | ||
threshold current | Ith | mA | 15 | 30 | 50 |
side mode suppression ratio | SMSR | dB | > 35 | ||
current tuning coefficient | CI | nm / mA | 0.1 | ||
temperature tuning coefficient | CT | nm / K | 0.35 | ||
operating chip temperature | Top | °C | 10 | 20 | 50 |
operating case temperature* | TC | °C | -20 | 25 | 50 |
storage temperature* | TS | °C | -30 | 20 | 70 |
* 結露しないこと
Distributed Feedback Lasers: 4000 nm – 4600 nm
主な機能
- モノモード
- 連続波
- 室温
- 低消費電力
- 調整可能
- カスタム波長
技術データ
parameters | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength (at Top, Iop) | λop | nm | 0.1 nm | ||
optical output power (at λop) | Pop | mW | 5 | ||
operating current | Iop | mA | 120 | ||
operating voltage | Vop | V | 5 | ||
threshold current | Ith | mA | 20 | 40 | 60 |
side mode suppression ratio | SMSR | dB | > 35 | ||
current tuning coefficient | CI | nm / mA | 0.12 | ||
temperature tuning coefficient | CT | nm / K | 0.45 | ||
operating chip temperature | Top | °C | 10 | 20 | 50 |
operating case temperature* | TC | °C | -20 | 25 | 50 |
storage temperature* | TS | °C | -30 | 20 | 70 |
* 結露しないこと
Distributed Feedback Lasers: 4600 nm – 5300 nm
主な機能
- モノモード
- 連続波
- 室温
- 低消費電力
- 調整可能
- カスタム波長
技術データ
parameters | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength (at Top, Iop) | λop | nm | 0.1 nm | ||
optical output power (at λop) | Pop | mW | 3 | ||
operating current | Iop | mA | 120 | ||
operating voltage | Vop | V | 5 | ||
threshold current | Ith | mA | 30 | 40 | 70 |
side mode suppression ratio | SMSR | dB | > 35 | ||
current tuning coefficient | CI | nm / mA | 0.14 | ||
temperature tuning coefficient | CT | nm / K | 0.48 | ||
operating chip temperature | Top | °C | 10 | 20 | 50 |
operating case temperature* | TC | °C | -20 | 25 | 50 |
storage temperature* | TS | °C | -30 | 20 | 70 |
* 結露しないこと
Distributed Feedback Lasers: 5300 nm – 5800 nm
主な機能
- モノモード
- 連続波
- 室温
- 低消費電力
- 調整可能
- カスタム波長
技術データ
parameters | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength (at Top, Iop) | λop | nm | 0.1 nm | ||
optical output power (at λop) | Pop | mW | 1 | ||
operating current | Iop | mA | 120 | ||
operating voltage | Vop | V | 5 | ||
threshold current | Ith | mA | 30 | 40 | 70 |
side mode suppression ratio | SMSR | dB | > 35 | ||
current tuning coefficient | CI | nm / mA | 0.15 | ||
temperature tuning coefficient | CT | nm / K | 0.5 | ||
operating chip temperature | Top | °C | 5 | 20 | 50 |
operating case temperature* | TC | °C | -20 | 25 | 40 |
storage temperature* | TS | °C | -30 | 20 | 70 |
* 結露しないこと
Distributed Feedback Lasers: 5800 nm – 6500 nm
主な機能
- モノモード
- 連続波
- 室温
- 低消費電力
- 調整可能
- カスタム波長
技術データ
parameters | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
wavelength precision | δ | nm | 0.1 | ||
optical output power | Pout | mW | 1 | ||
forward current | If | mA | 120 | ||
threshold current | lth | mA | 30 | 40 | 70 |
current tuning coefficient | CI | nm / mA | 0.15 | ||
temperature tuning coefficient | CT | nm / K | 0.5 | ||
typical maximum operating voltage | Vop | V | 5 | ||
side mode suppression ratio | SMSR | dB | > 35 | ||
storage temperature | TS | °C | -40 | 20 | 80 |
operational temperature at case | TC | °C | -20 | 20 | 45 |
chip operational temperature | Top | °C | -10 | 5 | 15 |
分散フィードバック量子カスケードレーザー
Distributed Feedback Lasers: 6000 nm – 14000 nm
主な機能
- モノモード
- パルス動作
- 室温
- 調整可能
- カスタム波長
技術データ
parameters (T = 25 °C) | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
wavelength precision | δ | nm | 0.1 | ||
average output power | Pavg | mW | 1 | 3 | 20 |
peak output power | Ppeak | mW | 10 | 100 | 1000 |
pulsed operation current | If | mA | 1000 | 3600 | |
pulsed threshold current | lth | mA | 500 | 2000 | |
direct current tuning coefficient | CI | nm / mA | 0.05 | 0.2 | |
temperature tuning coefficient | CT | nm / K | 0.45 @ 6 µm | 0.5 | 1.1 @ 14 µm |
operating voltage | Vop | V | 10 | 15 | 20 |
peak slope efficiency | e | mW / A | 200 | 500 | 800 |
repetition frequency | f | kHz | 0.001 | 100 | 2000 |
pulse length | t | ns | 2 | 100 | 3000 |
duty cycle | d. c. | % | 0 | 3 | 10 |
side mode suppression ratio | SMSR | dB | > 35 | ||
slow axis (FWHM) | degrees | 20 | 25 | 30 | |
fast axis (FWHM) | degrees | 50 | 60 | 70 | |
storage temperature | TS | °C | -40 | 20 | 80 |
operational temperature at case | TC | °C | -20 | 25 | 80 |
TOP Wavelengths
各気体の検出に最も良い波長のDFBレーザーをご用意いたしました。
Top DFB laser diodes
- 760.8 nm (酸素検出用)
- 1278.8 nm (ふっ化水素検出用)
- 1392 nm (水蒸気検知用)
- 1512.2 nm (アンモニウム検出用)
- 1560 nm – 1590 nm (硫化水素検出用)
- 1651 nm (メタン検出用)
- 1742 nm (塩化水素検出用)
- 1854 nm & 1877 nm (水蒸気検出用)
- 2004 nm (二酸化炭素検出用)
- 2334 nm (一酸化炭素検出用)
Top DFB interband cascade lasers
- 3240.0 & 3270.0 nm (メタン検出)
- 3345 nm & 3375 nm (エタン検出)
- 4524.0 nm & 4534 nm (窒素酸化物検出用)
- 5184 nm & 5263 nm (窒素酸化物検出用)
Fabry Perot Lasers
本FPレーザーはお客様の要求に合わせて特別に設計されています。外付けのキャビティーとの組み合わせで、ガス検知アプリケーションなどに最適です。
マルチモードレーザーは、国際特許取得済みのユニークなリッジ導波路方式に基づいています。近赤外および中赤外におけるこれらのFPレーザは、優れた光学特性を有するマルチモード放射を実現しています。適切なリッジ幅を選択することによって、横方向の単一モードのレーザが得られます。 FPデバイスは、横方向のマルチモードです。
アプリケーションには、発電所、ガスパイプライン、排出制御システム、航空機搭載アプリケーション、衛星アプリケーションなどがあります。
Fabry-Pérot Lasers: 760 nm – 840 nm
主な機能
- スペクトルマルチモード
- ラテラルシングルモード
- 連続波
- 室温
- カスタム波長
技術データ
parameters (T = 25 °C) | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength(at Top, Iop) | λop | nm | -20 | specify | 20 |
optical output power (at λop) | Pop | mW | 10 | ||
operating current | Iop | mA | 30 | ||
operating voltage | Vop | V | 3 | ||
threshold current | Ith | mA | 50 | ||
operating chip temperature | Top | °C | 20 | 25 | 50 |
operating case temperature* | TC | °C | -20 | 25 | 50 |
storage temperature* | TS | °C | -40 | 20 | 80 |
* 結露しないこと
Fabry-Pérot Lasers: 840 nm – 1100 nm
主な機能
- スペクトルマルチモード
- ラテラルシングルモード
- 連続波
- 室温
- カスタム波長
技術データ
parameters (T = 25 °C) | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength(at Top, Iop) | λop | nm | -20 | specify | 20 |
optical output power (at λop) | Pop | mW | 35 | ||
operating current | Iop | mA | 70 | ||
operating voltage | Vop | V | 3 | ||
threshold current | Ith | mA | 50 | ||
operating chip temperature | Top | °C | 20 | 25 | 50 |
operating case temperature* | TC | °C | -20 | 25 | 50 |
storage temperature* | TS | °C | -40 | 20 | 80 |
* 結露しないこと
Fabry-Pérot Lasers: 1100 nm – 1700 nm
主な機能
- スペクトルマルチモード
- ラテラルシングルモード
- 連続波
- 室温
- カスタム波長
技術データ
parameters (T = 25 °C) | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength(at Top, Iop) | λop | nm | -20 | specify | 20 |
optical output power (at λop) | Pop | mW | 10 | ||
operating current | Iop | mA | 45 | ||
operating voltage | Vop | V | 2 | ||
threshold current | Ith | mA | 50 | ||
operating chip temperature | Top | °C | 20 | 25 | 50 |
operating case temperature* | TC | °C | -20 | 25 | 50 |
storage temperature* | TS | °C | -40 | 20 | 80 |
* 結露しないこと
Fabry-Pérot Lasers: 1700 nm – 2400 nm
主な機能
- スペクトルマルチモード
- ラテラルシングルモード
- 連続波
- 室温
- カスタム波長
技術データ
parameters (T = 25 °C) | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength(at Top, Iop) | λop | nm | -20 | specify | 20 |
optical output power (at λop) | Pop | mW | 10 | ||
operating current | Iop | mA | 120 | ||
operating voltage | Vop | V | 2 | ||
threshold current | Ith | mA | 45 | ||
operating chip temperature | Top | °C | 20 | 25 | 50 |
operating case temperature* | TC | °C | -20 | 25 | 50 |
storage temperature* | TS | °C | -40 | 20 | 80 |
* 結露しないこと
Fabry-Pérot Lasers: 2400 nm – 2900 nm
主な機能
- スペクトルマルチモード
- ラテラルシングルモード
- 連続波
- 室温
- カスタム波長
技術データ
parameters (T = 25 °C) | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength(at Top, Iop) | λop | nm | -20 | specify | 20 |
optical output power (at λop) | Pop | mW | 5 | ||
operating current | Iop | mA | 100 | ||
operating voltage | Vop | V | 2 | ||
threshold current | Ith | mA | 50 | ||
operating chip temperature | Top | °C | 20 | 25 | 50 |
operating case temperature* | TC | °C | -20 | 25 | 50 |
storage temperature* | TS | °C | -40 | 20 | 80 |
* 結露しないこと

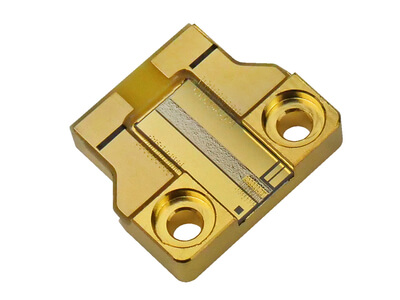

Fabry-Pérot Lasers: High-Power Option
主な機能
- ハイパワー
- 連続波
- カスタム波長
- 室温
- スペクトルマルチモード
技術データ
parameters (T = 25 °C) | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength(at Top, Iop) | λop | nm | -20 | specify | 20 |
optical output power (at λop) | Pop | mW | 1000 | ||
operating current | Iop | mA | 5000 | ||
operating voltage | Vop | V | 2.5 | ||
threshold current | Ith | mA | 300 | ||
operating chip temperature* | Top | °C | 15 | 20 | 40 |
storage temperature* | TS | °C | -40 | 20 | 80 |
* 結露しないこと
Fabry-Pérot Lasers: 2800 nm – 6500 nm
主な機能
- スペクトルマルチモード
- ラテラルシングルモード
- 連続波
- 室温
- カスタム波長
技術データ
parameters (T = 25 °C) | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
operating wavelength(at Top, Iop) | λop | nm | -20 | specify | 20 |
optical output power (at λop) | Pop | mW | 5 | ||
operating current | Iop | mA | 100 | ||
operating voltage | Vop | V | 4 | 6 | |
threshold current | Ith | mA | 50 | ||
operating chip temperature | Top | °C | -10 | depends on λ | 50 |
operating case temperature* | TC | °C | -20 | 25 | 50 |
storage temperature* | TS | °C | -40 | 20 | 80 |
* 結露しないこと
Fabry-Pérot Lasers: 6000 nm – 14000 nm
主な機能
- スペクトルマルチモード
- ラテラルシングルモード
- 連続波
- 室温
- カスタム波長
技術データ
parameters (T = 25 °C) | symbol | unit | minimum | typical | maximum |
---|---|---|---|---|---|
wavelength precision | δ | nm | 5 | 50 | 100 |
average output power | Pavg | mW | 1 | 5 | 20 |
peak output power | Ppeak | mW | 10 | 200 | 1000 |
pulsed operation current | If | mA | 1000 | 3600 | |
pulsed threshold current | lth | mA | 500 | 2000 | |
operating voltage | V | V | 10 | 15 | 20 |
peak slope efficiency | e | mW / A | 200 | 500 | 800 |
repetition frequency | f | kHz | 0.001 | 100 | 2000 |
pulse length | t | ns | 2 | 100 | 3000 |
duty cycle | d. c. | % | 0 | 3 | 10 |
side mode suppression ratio | SMSR | dB | > 30 | ||
slow axis (FWHM) | degrees | 20 | 25 | 30 | |
fast axis (FWHM) | degrees | 50 | 60 | 70 | |
emitting area | W x H | µm x µm | 15 x 4 | 20 x 5 | 30 x 6 |
storage temperature | TS | °C | -40 | 20 | 80 |
operational temperature at case | TC | °C | -20 | 25 | 80 |
* 結露しないこと
Packaging Options
複数の種類のパッケージを提供しています。
Free space
技術データ
Package | TO5- our workhorse | TO66 – our workhorse for ICLs | TO5.6 – the absolute basic |
---|---|---|---|
availability | 760 nm – 3000 nm | 3000 nm – 6000 nm | 760 nm – 3000 nm |
TEC | + integrated TEC | + integrated large TEC | – no TEC |
NTC | + integrated NTC | + integrated NTC | – no NTC |
cap | + AR coated cap (optional) | + AR coated cap (optional) | – uncoated cap (optional) |
window | + AR coated window (optional) | + AR coated window (optional) | – uncoated window (optional) |
plug&play | – collimation required | – collimation required | – collimation required |
size | + small footprint | + small footprint | + small footprint |
costs | + low cost | + low cost | + low cost |
Fiber coupled
技術データ
Package | SM-BTF – our fiber coupled workhorse | PM-BTF – high-end fiber coupling |
---|---|---|
availability | 760 nm – 2360 nm | 1064 nm – 2050 nm |
TEC | + integrated TEC | + integrated TEC |
NTC | + integrated NTC | + integrated NTC |
fiber | + single mode fiber | + polarization maintaining fiber |
plug & play | + fiber coupled beam | + fiber coupled beam |
size | – large footprint | – large footprint |
costs | – higher costs than free space | – higher costs than free space |
OEM
技術データ
Package | c-mount – basic OEM integration | chip on heatspreader – high-end OEM integration |
---|---|---|
availability | 760 nm – 3000 nm | 760 nm – 6000 nm |
TEC | – no TEC | – no TEC |
NTC | – no NTC | + integrated NTC |
cap | NA | NA |
window | NA | NA |
plug & play | – collimation required | – collimation required |
size | + small footprint | + smallest footprint |
costs | + low cost | + low cost |
Collimation & Accessories
技術データ
Package | Lens on Cap | Heatsink for TO5 / TO66 | Heatsink for TO5 with collimation |
---|---|---|---|
availability | 1850 nm – 6500 nm | 760 nm – 6500 nm | 760 nm – 6500 nm |
heat distribution | none, use separate heatsink | warranted | warranted |
connectors | TO66 connectors only | for laser diode driver & temperature controller | for laser diode driver & temperature controller |
posts | none, use separate heatsink | M6 thread for optical table | M6 thread for optical table |
cage system | none, use separate heatsink | standard | standard |
collimation | high-end collimation with θ < 4 mrad | none | collimation with up to 40 % power loss |
