1064nm PMコンポーネント

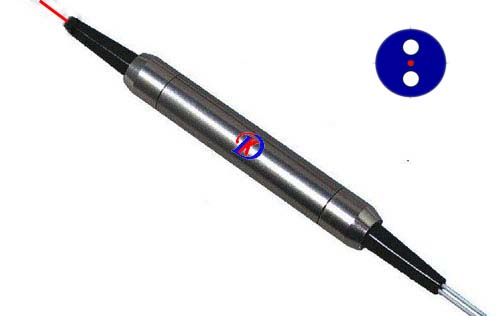

3 Port Polarization Maintaining Optical Circulator 1064nm
| Parameter | Values | |
|---|---|---|
| Type | Type A | Type B |
| Center Wavelength(nm) | 1064 | |
| Operating Wavelength Range(nm) | ± 5 | |
| Min. Isolation(dB) | 35 | 22 |
| Typ. Isolation(dB) | 40 | 30 |
| Peak Isolation(dB) | 45 | 38 |
| Typ. Insertion Loss(dB) | 3.0 | 1.8 |
| Max. Insertion Loss(dB) | 3.5 | 2.2 |
| Min. Extinction Ratio(dB) | 22 | 20 |
| Min. Return Loss(dB) | 55 | |
| Min. Cross Talk(dB) | 50 | |
| Max. Optical Power (CW) (mW) | 300 | |
| Max. Tensile Load(N) | 5 | |
| Fiber Type | PM980 | |
| Operating Temperature(℃) | -5 to +70 | |
| Storage Temperature(℃) | -40 to +85 | |
| Package Dimensions (mm) | Ø5.5 x L35 | |
*Above specifications are for device without connector.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
*The PM fiber and the connector key are aligned to the slow axis and fast axis is blocked.

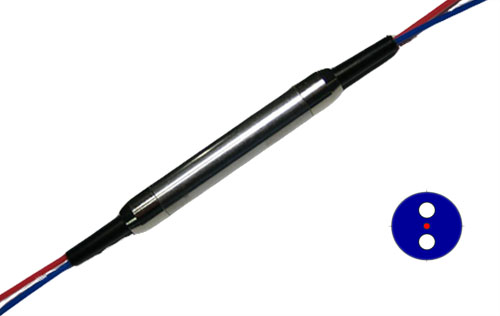

4 Port Polarization Maintaining Optical Circulator 1064nm
| Parameter | Values | |
|---|---|---|
| Type | Type A | Type B |
| Center Wavelength(nm) | 1064 | |
| Operating Wavelength Range(nm) | ± 5 | |
| Min. Isolation(dB) | 35 | 20 |
| Typ. Isolation(dB) | 40 | 28 |
| Peak Isolation(dB) | 45 | 35 |
| Typ. Insertion Loss(dB) | 3.2 | 2.2 |
| Max. Insertion Loss(dB) | 3.7 | 2.8 |
| Min. Extinction Ratio(dB) | 20 | 20 |
| Min. Return Loss(dB) | 55 | |
| Min. Cross Talk(dB) | 50 | |
| Max. Optical Power (CW) (mW) | 300 | |
| Max. Tensile Load(N) | 5 | |
| Fiber Type | PM Panda Fiber | |
| Operating Temperature(℃) | -5 to +70 | |
| Storage Temperature(℃) | -40 to +85 | |
| Package Dimensions (mm) | Ø5.5 x L35 | |
*Above specifications are for device without connector.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
*The PM fiber and the connector key are aligned to the slow axis and fast axis is blocked.

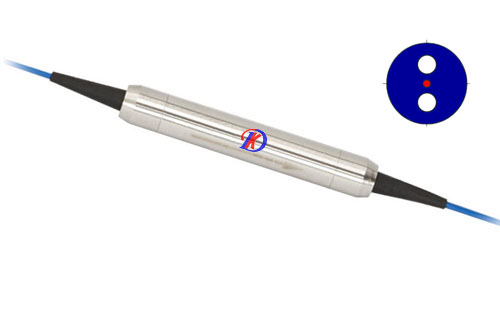

Polarization Maintaining Isolator 1064nm
| Parameter | Value | |
|---|---|---|
| Stage | Single Stage | Dual stage |
| Operating wavelength(nm) | 1064 | |
| Operating bandwidth(nm) | ±5 | |
| Typical insertion loss(dB) | ≤1.6 | ≤2.6 |
| Extinction Ratio (dB) | ≥20(Type B) or ≥23(Type F) | |
| Isolation(dB) | ≥30 | ≥45 |
| Return loss(dB) | ≥55/50 | |
| Handling power(mW) | <300 | |
| Tensile Load(N) | <5 | |
| Fiber Type | PM 980 | |
| Operating temperature(℃) | -5 ~ +70 | |
| Storing temperature(℃) | -40 ~ +85 | |
| Package dimension(mm) | Ø5.5 x 35 or customer specified | |
*Above specifications are for device without connector.
* “B” for both axis working, “F” for Fast axis blocking.
*For devices with connectors, IL will be 0.5dB higher, RL will be 5dB lower and ER will be 2dB lower.
*The PM fiber and the connector key are aligned to the slow axis and fast axis is blocked.

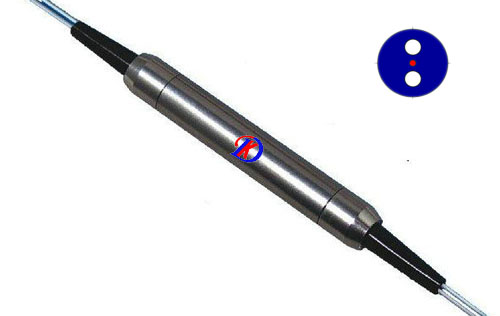

Polarization Maintaining Filter Splitter 1064nm
| Parameter | Values | |
|---|---|---|
| Configuration | 1×2 | 2×2 |
| Center Wavelength(nm) | 1064 | |
| Operating Wavelength Range(nm) | ±20 | |
| Coupling Ratio (%) | 1/99, 2/98, 5/95, 10/90,50/50 etc | |
| Insertion Loss(dB) | IL related to CR | IL related to CR |
| Excess Lose(dB) | ≤0.8 | ≤1.0 |
| Extinction Ratio for F type & (B type) (dB) | ≥22 & (20) | ≥22 & (18) |
| Return Loss(dB) | ≥50 | |
| Optical Power (CW) (mW) | ≤300 | |
| Tensile Load(N) | ≤5 | |
| Fiber Type | PM 980 for Input/output HI1060 or PM 980 for tap port | |
| Operating Temperature(℃) | -5 to +70 | |
| Storage Temperature(℃) | -40 to +85 | |
| Package Dimensions (mm) | Ø5.5 x L35 | |
*Above specifications are for device without connector.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
*The PM fiber and the connector key are aligned to the slow axis and fast axis is blocked.

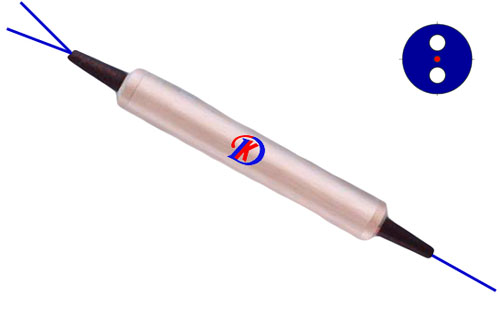

Polarization Beam Combiner/Splitter 1064nm
| Parameter | Value |
|---|---|
| Operating wavelength(nm) | 1064 |
| Operating bandwidth(nm) | ±20 |
| Typical insertion loss(dB) | ≤0.8 |
| Return loss(dB) | ≥50 |
| Typical Extinction Ratio(dB) | ≥22(for PBS) |
| Handling power(mW) | <300 |
| Tensile Load(N) | <5 |
| Fiber Type | PM 980 (Input) HI1060 or PM 980 (Output) |
| Operating temperature(℃) | -5 ~ +70 |
| Storing temperature(℃) | -40 ~ +85 |
| Package dimension(mm) | Ø5.5 x 34 or customer specified |
*Above specifications are for device without connector.
*For devices with connectors, IL will be 0.5dB higher, RL will be 5dB lower and ER will be 2dB lower.
*The PM fiber and the connector key are aligned to the slow axis and fast axis is blocked.

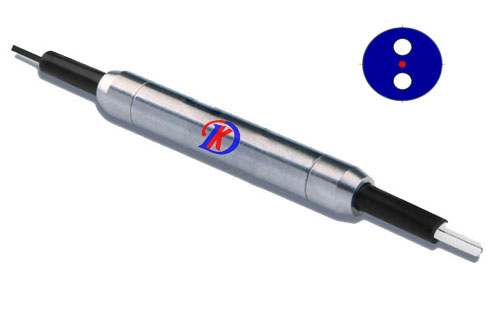

Isolator+Polarization Beam Combiner/Splitter 1064nm
| Parameter | Single stage |
|---|---|
| Center Wavelength (nm) | 1064 |
| Operating Wavelength Range(nm) | ±5 |
| Insertion Loss (dB) | ≤2.1 |
| Typical Isolation (dB) | 35 |
| Isolation (dB) | >25 |
| Extinction Ratio(for splitter only) (dB) | >20 |
| Return Loss (dB) | >50 |
| Optical Power (mW) | ≤300 |
| Fiber Type (Port1&2) | SM98-PS-U25A |
| Fiber Type(Port3) | See ordering information |
| Max.Tensile Load (N) | ≤5 |
| Operating Temperature (°C) | -5 ~+70 |
| Storage Temperature (°C) | -40 ~+85 |
| Package Dimension (mm) | ø5.5 x L35 |
*Above specifications are for device without connector.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
*The PM fiber and the connector key are aligned to the slow axis and fast axis is blocked.
Polarization Maintaining In-line Polarizer 1064nm
| Parameter | In-line Polarizer | |
|---|---|---|
| Operating Wavelength (nm) | 1064 | |
| Bandwidth (nm) | ±40 | |
| Typ. Insertion Loss(dB)@23℃ | ≤0.8 | |
| Extinction Ratio (dB) | ≥28 | |
| Return Loss (dB) | ≥50/50 | |
| Fiber Type | Option 1 | PM980-PM980 |
| Option 2 | HI1060-PM980 | |
| Option 3 | HI1060-HI1060 | |
| Optical Power (CW) (mW) | ≤300 | |
| Operating temperature(℃) | -5~+70 | |
| Storage temperature (℃) | -40~+85 | |
| Dimension (mm) | Φ5.5×L34 | |
*Above specifications are for device without connector.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
* For device with connector, key aligned to slow axis.
In-line Faraday Rotator 1064nm
| Parameter | In-line Faraday Rotator | |
|---|---|---|
| Operating Wavelength(nm) | 1064 | |
| Bandwidth (nm) | ±5 | |
| Typ. Insertion Loss(dB)@23℃ | ≤1.1 | |
| Extinction Ratio (dB) | ≥20 | |
| Rotation Angle(degree) | 45±1 | |
| Return Loss (dB) | ≥50/50 | |
| Fiber Type | Option 1 | PM980-PM980 |
| Option 2 | HI1060-PM980 | |
| Option 3 | HI1060-HI1060 | |
| Optical Power (CW) (mW) | ≤300 | |
| Operating temperature(℃) | -5~+70 | |
| Storage temperature(℃) | -40~+85 | |
| Dimension (mm) | Φ5.5×L34 | |
*Above specifications are for device without connector.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
* For device with connector, key aligned to slow axis.

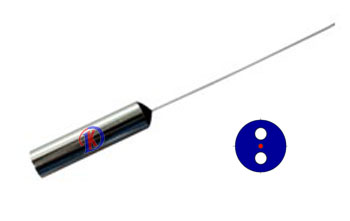

Polarization Maintaining Faraday Mirror 1064nm
| Parameter | Faraday Mirror |
|---|---|
| Operating Wavelength(nm) | 1064 |
| Bandwidth (nm) | ±5 |
| Typ. Insertion Loss(dB)@23℃ | 2.6 |
| Insertion Loss(dB) | ≤3.0 |
| Extinction Ratio (dB) | ≥20 |
| Rotation Angle(degree) | 45±1 |
| Fiber Type | PM Panda Fiber |
| Optical Power (CW) (mW) | ≤300 |
| Operating temperature(℃) | -5~+70 |
| Storage temperature(℃) | -40~+85 |
| Dimension (mm) | Φ5.5×L17 |
*Above specifications are for device without connector.
*For devices with connectors, IL will be 0.5dB higher, RL will be 5dB lower and ER will be 2dB lower.
* For device with connector, key aligned to slow axis.

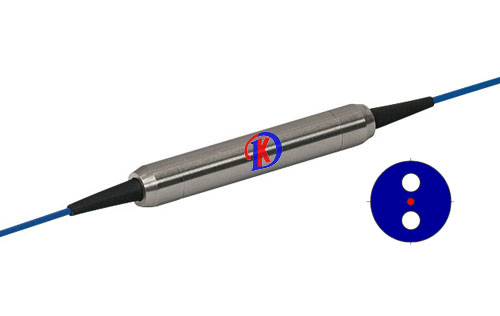

1064nm PM Bandpass Filter
| Parameter | Specification | ||
|---|---|---|---|
| Center Wavelength(nm) | 1064 | ||
| Pass bandwidth @0.5dB down(nm) | >2 | >5 | >8 |
| Stop bandwidth@25dB down(nm) | <20 | <22 | <25 |
| Insertion Loss@1064±1nm(dB) | 1.2 | – | – |
| Insertion Loss@1064±2.5nm(dB) | – | 0.8 | – |
| Insertion Loss@1064±4nm(dB) | – | – | 0.8 |
| Isolation@1000~1058nm&1070~1100(dB) | 25 | – | – |
| Isolation@1000~1055nm&1075~1100(dB) | – | 28 | – |
| Isolation@1000~1050nm&1080~1100(dB) | – | – | 32 |
| Return Loss(dB) | >50 | ||
| Extinction Ratio (dB) | >20 | ||
| PDL(dB) | <0.1 | ||
| Operating Temperature(℃) | -5 – 75 | ||
| Storage Temperature(℃) | -40 – 85 | ||
| Fiber Type | PM980 | ||
| Power Handling (Max)( (mW) | 300 | ||
| Fiber Pigtail Length (m) | 1meter | ||
| Dimensions (mm) | Ф5.5×L35 | ||
*The above specification is without connector
**For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower.
**Other specifications can be made on customer request.
