ID Photonicsについて

ドイツ本社の光学関連部品・製品のメーカーで、1)可変レーザー、2)伝送装置、3)PMコンポーネントの3分野で
事業を展開しています。

製品 – products

スクリーンショット 2016-05-24 16.46.23スクリーンショット 2016-05-24 16.48.10スクリーンショット 2016-05-24 16.42.22



製品名

Tunable lasers

  • CoBrite tunable lasers
    • H01 : Continuously tunable laser
    • N01 : 1KHz Ultra-narrow linewidth tunable laser
    • C01 : 300KHz linewidth ITU tunable laser
    • W01 : Standard linewidth ITU tunable laser
  • CoBrite platforms
    • CoBrite DX Series
    • CoBrite MX Series
    • Cobrite PX Series

Transmitter solutions

  • IQ Automatic BIAS Control
  • IQ Multi-Format Transmitter
  • Multi-Terabit Test Solution

PM Components

  • PMUX
  • PM EDFA
  • PM Patchcords
  • PM Coupler

inquiry_button



Tunable Lasers

ID Photonics produces 4 types of tunable sources (H01, N01, C01, W01), which can be integrated in some or all of 3 kinds of turnkey housings (DX, MX and PX series, see below).

CoBrite tunable sources

H01 : Continuously tunable laser

  • 100kHz, 25kHz typical  narrow linewidth for coherent transmission applications and research
  • C- or L- Band tunability to any value with 1MHz resolution
  • Extended range for C Band tunable laser covering both A- and C- band! (191.3 – 196.25THz). Customer specified tuning range available from 1515 to 1625nm
  • Polarization maintaining output
  • output power range of 6 – 16dBm
  • Frequency accuracy +/-1.5GHz, +/-0.3GHz over 24hrs
  • Power stability 0.03dB over 24hours
  • Available on all Laser platforms (see hereunder)
  • Extension for C+L Band in single laser port available:
    • 186.25 to 196.25THz (1527.604nm to 1609.623nm) seamless tuning range
    • output power range 3 – 12dBm

N01 : 1KHz Ultra-narrow linewidth tunable laser

  • 1kHz linewidth for next generation coherent transmission applications
  • C- Band tunability
  • Polarization maintaining output
  • Available on DX4 and MX Laser platforms (see hereunder)

C01 : 300KHz linewidth ITU tunable laser

  • 300kHz typical narrow linewidth for coherent transmission applications which require excellent stability for 0.1seconds or more
  • extremely stable line for low speed carrier recovery receivers
  • C- or L- Band tunability on 50GHz ITU Grid
  • Polarization maintaining output
  • output power up to 15.5dBm
  • Available on all Laser platforms (see hereunder)

W01 : Standard linewidth ITU tunable laser

  • 1MHz typical line width for standard applications
  • C- or L- Band tunability on 50GHz ITU Grid
  • Polarization maintaining output
  • tunable output power up to 14dBm
  • fast switching time
  • cost effective
  • Available on all Laser platforms (see hereunder)

CoBrite laser platforms

CoBrite-DX4 (PDF)スクリーンショット 2016-05-24 16.42.22

Can host 1 to 4 CoBright tunable sources (see above).

Features :

  • standalone (no PC required for basic operations)
  • portable
  • automatization commands (SCPI)
  • USB or Ethernet control with PC GUI
  • FC or SC connectors
  • can be mounted on 19″ rack

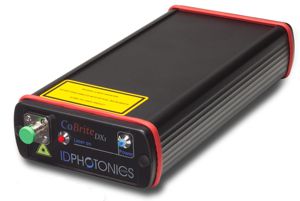

CoBrite-DX1 (PDF)CoBriteDX1_wo_cable_web

Hosts 1 of any CoBrite tunable source except N01 type (see above).

Features :

  • portable compact design
  • competitive price
  • USB control with PC GUI
  • multi-device operation on a single PC
  • automatization conmmands (SCPI)

CoBrite-MX (PDF)

It is a mainframe series based on Slide-in cards of 4 CoBrite tunable sources (see above) ranging seamlessly from 4 up to 104 lasers.

General features: USB or Ethernet control with PC GUI, automatization commands (SCPI).



  • CoBrite-MX4 Slide-in cardスクリーンショット 2016-05-24 16.48.10
    • Hosts 2 or 4 lasers
    • local On/Off switch for each laser
    • SC or FC connectors



  • Mainframe CBMA2413″ width (345mm) rack
    • up to 6 CoBrite-MX4 cards
    • central controller



  • Mainframe CBMA48CBMX_all_variants
    • 19″ width (482mm) rack
    • up to 12 CoBrite-MX4 cards
    • can be extended to a CBSL56 frame
    • central controller



  • Mainframe CBSL56
    • 19″ width (482mm) rack
    • up to 14 CoBrite-MX4 cards
    • is controlled through an additional CBMA48 frame, thus with up to 104 lasers sources in one system



CoBrite-PX (PDF)

This is a slide-in card designed for PXI and CompactPCI systems.

Features:

  • 1 or 2 CoBrite lasers (see above)
  • local On/Off switch for each laser
  • User exchangeable optical connector

inquiry_button

Transmitter solutions

IQ Automatic Bias Control – ABC (PDF)

BIAS_Control_Application_Example

This device is designed to automatically find and lock the operating point of Mach-Zehnder modulators, for single polarization Intensity Modulation as well as for multiplexed IQ modulation. In that last case, it automatically locks on the optimal operating point for arbitrary RF input signals (QPSK, QAM, Nyquist…).

Features:

  • Modulation Format and RF amplitude independant
  • Software configurable support of single and dual-pol IQ or Intensity Mach Zehnder Modulators
  • A zero noise feature allows achieving optimal and repeatable performance
  • Compatible with OIF Standard IQ Modulators
  • No external Tap Photodiode required
  • Easy-to-Use Graphical User Interface
  • USB, Ethernet and UART interface for remote control
  • SCPI Style remote control command set, LabView® drivers supplied



IQ optical Multi-format transmitter – OMFT (PDF)

OMFT

A fully integrated device which converts electrical RF signals into an IQ modulated optical signal over a 40GHz bandwidth.

It can easily be interfaced with Arbitrary Waveforms or Pulse Patterns generators.

Features:

  • Modulation Format and RF amplitude independent
  • Capable of supporting baud rates of up to 64 GBaud
  • Perfect for M-QAM, M-PSK, OFDM and custom modulation formats
  • High repeatability and reliability of optimized optical signals
  • A zero noise feature allows achieving optimal and repeatable performance
  • Intuitive and user-friendly Graphical User Interface
  • USB and Ethernet interface for remote control
  • SCPI Style remote control command set, LabView® drivers supplied
  • Highly customizable to suit your needs



Multi-Terabit Test solution (PDF)

This device was developed in cooperation with the famous Fraunhofer Institute in Germany. It results in an optical multi-format transmitter enabling generation of signals with various modulation formats (PSK, QPSK, 16-QAM…) for up to 272Gb/s per carrier.

It includes 34GSamples/s Waveform generators, high-bandwidth dual polarization IQ modulator, and a nonlinear pre-distortion processor. It provides thus up to 200 DWDM channels and up to 54 Tb/s signals.

Features:

  • PC GUI
  • DSP library for arbitrary waveform generation

inquiry_button

PM Components



PMUX (PDF)

PMUX_web

  • 19″ rack
  • customer-defined channels number
  • PM Panda fibers
  • <6dB insertion loss
  • FC/PC, FC/APC or SC/PC connectors
  • SB with PC GUI monitoring
  • AWG can be integrated



PM Couplers

  • 1×2, 2×2 (PDF)
  • 1×4, 1×8, 1×16 (PDF)

PM Panda fibers ; center wavelength = 1550nm ; losses depend on the channels number (see PDF). With or without connectors (FC, SC or LC).



PM Patchcords (PDF)

Patchcords

  • PM Panda fiber
  • UPC or APC connectors
  • Insertion loss <0.5dB
  • Max. optical power: 300mW



PM EDFA

These fibers allow to enhance power, especially of the output signals of the Transmitters and Multiplexers.

Please request for details.
