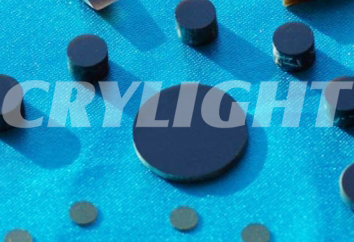

Cr4+:YAG Crystal
仕様
| Orientation: | <111> or <100> within 5° |
|---|---|
| Dimensional Tolerance: | +/-0.1mm |
| Flatness: | <λ/8 at 633nm |
| Surface Quality: | 20/10 Scracth/Dig |
| Parallelism: | < 20 arc seconds |
| Perpendicularity: | < 5 arc minutes |
| Wavefront Distortion: | <λ/8 at 633nm |
| Clear Aperture: | Central 90% |
| Chamfer: | 0.15×45° |
| Coating: | * S1,S2: AR@1064nm |
| * S1: HR@1064nm; S2: AR@1064nm | |
| Chemical Formula | Cr4+:Y3A15O12 |
| Crystal Structure | Cubic garnet |
| Recovery time | 8.5μs |
| Hardness Mohs | 8.5 |
| Density | 4.56g/cm |
| Orientation | [100]+/-10° |
| Thermal conductivity | 12.13w/m/k |
| Refractive index | 1.82 @ 1064nm |
| Base state absorption cross section | σs1=4.3×10-18cm2 |
| Emission state absorption cross section | σs2=8.2×10-19cm2 |
| Fluorescence lifetime | 3.4us |
| *Cr4+:YAG 結晶のご注文時に、アパーチュアー・初期透過・コーティング条件をご指定下さい | |
