Isolators

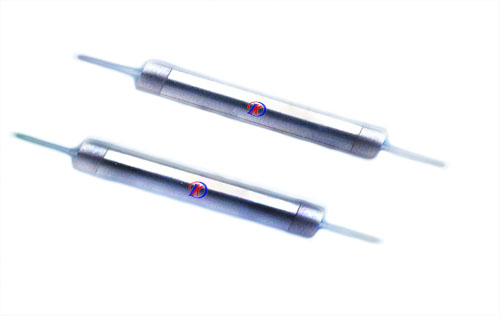

1310nm & 1550nm 3 Port Polarization Insensitive Single/Dual Stage Isolator
| Parameter | Single Stage | Dual Stage | ||
|---|---|---|---|---|
| Grade | P | A | P | A |
| Operating Wavelength (nm) | 1310 or 1550 | |||
| Typical Peak Value Isolation (dB) (23°C) | >42 | >40 | >52 | >50 |
| Minimum Value Isolation * (dB) (23°C) | >32 | >30 | >46 | >45 |
| Insertion Loss Typical Value ** (dB) | 0.3 | 0.4 | 0.4 | 0.5 |
| Insertion Loss Maximum value *** (dB) | <0.5 | <0.7 | <0.6 | <0.8 |
| Return Loss (In/Out) (dB) | >65/60 | >60/55 | >65/60 | >60/55 |
| PDL (dB) | < 0.05 | < 0.1 | < 0.05 | < 0.1 |
| PMD (ps) | 0.2(0.05 available upon request) | |||
| Band Width (nm) | ±15 | ±30 | ||
| Operating Temperature (°C) | -20 ~ + 70 | |||
| Storage Temperature (°C) | -40 ~ +85 | |||
| Fiber Type | Corning SMF-28 | |||
| Fiber Length | 1m | |||
| Dimensions(mm) | 5.5×35 | |||
| Power Handing (mw) | 300 | |||
*At 23° C over bandwidth.
** Does not include connector, splice and fiber-end fresher losses.
*** Including PDL, operating wavelength range, -20° C to +70° C.

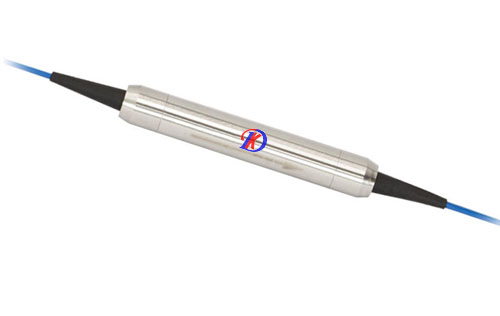

1480nm Polarization Insensitive Single/Dual Stage Isolator
| Parameter | Single Stage Isolator | Dual Stage Isolator | ||
|---|---|---|---|---|
| Gread | P Grade | A Grade | P Grade | A Grade |
| Operating Wavelength (nm) | 1480 | |||
| Typical Peak Value Isolation (dB) | 42 | 40 | 55 | 52 |
| Isolation Minimum Value *(dB) | 32 | 30 | 45 | 44 |
| Insertion Loss Typical Value ** (dB) | 0.4 | 0.5 | 0.5 | 0.6 |
| Insertion Loss Maximum Value ** *(dB) | 0.6 | 0.8 | 0.7 | 0.9 |
| Return Loss (In/Out) (dB) | > 65/60 | > 60/55 | > 65/60 | > 60/55 |
| Polarization Dependent Loss (dB) | < 0.05 | < 0.1 | < 0.05 | < 0.1 |
| PMD (dB) | 0.2(0.05 available upon request) | |||
| Band Width (nm) | ±15 | ±30 | ||
| Operating Temperature(°C) | -20 ~ + 70 | |||
| Storage Temperature (°C) | -40 ~ +85 | |||
| Fiber Type | Corning SMF-28 | |||
| Fiber Length | 1 meter | |||
| Dimensions(mm) | Ø5.5xL35 | |||
| Power Handing (mw) | 300 | |||
*At 23° C over bandwidth.
** Does not include connector, splice and fiber-end fresher losses.
*** Including PDL, operating wavelength range, -20° C to +70° C.
L-Band Polarization Insensitive Single /Dual Stage Isolator
| Type | Single Stage | Dual Stage | |||
|---|---|---|---|---|---|
| Operating Wavelength (nm) | 1585 | 1560-1620 | |||
| Grade | Premium | A Grade | Premium | A Grade | |
| Peak Isolation (Typ.) (dB) | >42 | >40 | >50 | >45 | |
| Isolation (Min.) (dB) | >30 | >28 | >45 | >40 | |
| Insertion Loss (Typ.) (dB) | 0.4 | 0.5 | 0.65 | 0.80 | |
| Insertion Loss (Max.) (dB) | <0.6 | <0.8 | <0.85 | <1.2 | |
| Return Loss (In/Out) (dB) | >65/60 | >55/50 | >65/60 | >55/50 | |
| PDL (dB) | <0.1 | <0.2 | <0.1 | <0.2 | |
| PMD (ps) | 0.2(0.05 available upon request) | 0.1 | |||
| Operating Temperature (° C) | -20 to + 60 | ||||
| Storage Temperature (° C) | -40 to +85 | ||||
| Fiber Type | Corning SMF-28 | ||||
| Fiber Pigtail Length | 1 Meter Each End | ||||
| Fiber Pigtail Type | 250um bare fiber or 900um tight buffer | ||||
| Package Dimension (mm) | OD5.5 x L35 | ||||
| Power Handling (mW) | 300 | ||||
*At 23° C over bandwidth.
** Does not include connector, splice and fiber-end fresher losses.
*** Including PDL, operating wavelength range, -20° C to +70° C.

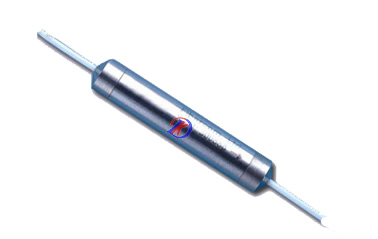

Polarization Insensitive Single/Dual Stage 2X2 Optical Isolator
| Type | Single Stage | Dual Stage | ||
|---|---|---|---|---|
| Operating Wavelength (nm) | 1310,1550, 1585 | |||
| Grade | Premium | A Grade | Premium | A Grade |
| Bandwidth (nm) | ± 15 | ±30 | ||
| Peak Isolation (Typ.) (dB) | ≥41 | ≥40 | ≥58 | ≥53 |
| Isolation (Min.) (dB) | ≥31 | ≥30 | ≥45 | ≥44 |
| Insertion Loss (Typ.) (dB) | ≤0.5 | ≤0.6 | ≤0.6 | ≤0.8 |
| Insertion Loss (Max.) (dB) | <0.65 | <0.75 | ≤0.8 | ≤0.9 |
| Cross Talk (Between the 2 isolators) (Min.) (dB) | ≥60 | ≥50 | ≥60 | ≥55 |
| Return Loss (In/Out)(Min.) (dB) | ≥60/55 | – | ≥60/55 | |
| PDL (dB) | ≤0.08 | ≤0.12 | ≤0.1 | ≤0.15 |
| PMD (ps) | ≤0.2(≤0.05ps available upon request) | ≤0.1(≤0.05ps available upon request) | ||
| Operating Temperature (° C) | -20 to + 60 | |||
| Storage Temperature (° C) | -40 to +85 | |||
| Fiber Type | Corning SMF-28 | |||
| Fiber Pigtail Length | 1 Meter Each End | |||
| Package Dimension (mm) | Ø5.5×35 (38 for 900um Jacket) | |||
| Power Handling (mW) | 300 | |||
Does not include connector, splice and fiber-end fresher losses.

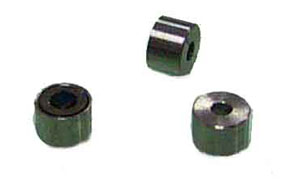

Free Space Isolator
| Parameter | Single Stage | Dual Stage | ||
|---|---|---|---|---|
| Grade | P Grade | A Grade | P Grade | A Grade |
| Center Wavelength (λc)(nm) | 1310 or 1550 and CWDM | |||
| Min Peak Isolation (λc at 23°C)(dB) | 40 | 38 | 60 | 55 |
| Min Bandwidth isolation (λc±15nm at 23°C) (dB) | 32 | 30 | 42 | 40 |
| Max Insertion Loss (λc at 23°C) (dB) | 0.20 | 0.25 | 0.40 | 0.50 |
| Max Bandwidth Insertion Loss(λc±15nm at 23°C) (dB) | 0.30 | 0.35 | 0.50 | 0.60 |
| Clear Aperture(mm) | ￠0.9 or other | ￠0.9 or other | ||
| Max Optical Power(mW) | 300 | 300 | ||
| Operating Temperature(℃) | -40 to +85 | -40 to +85 | ||
| Storage Temperature(℃) | -40 to +100 | -40 to +100 | ||

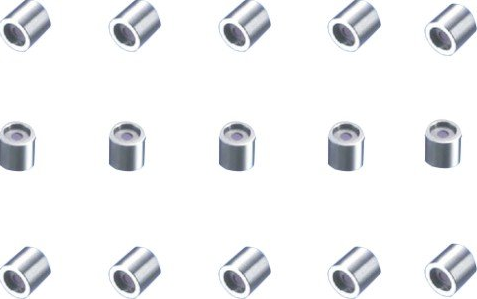

Free Space Isolator for CWDM
| Parameter | Single Stage | Dual Stage | ||
|---|---|---|---|---|
| Grade | P Grade | A Grade | Grade | P Grade |
| Operating Wavelength (nm) | 1470,1490,1510,1530,1550,1570,1590,1610 | |||
| Minimum Isolation at center wavelength (dB) | ≥42 | ≥40 | ≥55 | ≥50 |
| Isolation (λc +/-6.5nm)(dB) | ≥38 | ≥35 | ≥42 | ≥40 |
| Insertion Loss (dB) (λc +/-6.5nm) | ≤0.25 | ≤0.30 | ≤0.35 | ≤0.40 |
| Clear Aperture (mm) | ≥0.90 or ≥0.75 | |||
| Operating Temperature (° C) | -5 ~ + 70 | |||
| Storage Temperature (° C) | -40 ~ +85 | |||
| Power Handling (mW) | 300 | |||
Mini Size 1310&1550nm Polarization Insensitive Isolator
| Parameter | Single Stage | Dual Stage | ||
|---|---|---|---|---|
| Grade | P | A | P | A |
| Operating Wavelength (nm) | 1310 or 1550 | |||
| Typical Peak Value Isolation (dB) (23°C) | >40 | >38 | >50 | >48 |
| Minimum Value Isolation * (dB) (23°C) | >28 | >26 | >42 | >40 |
| Insertion Loss Typical Value ** (dB) | 0.4 | 0.5 | 0.5 | 0.6 |
| Insertion Loss Maximum value *** (dB) | <0.6 | <0.7 | <0.7 | <0.8 |
| Return Loss (In/Out) (dB) | >55/50 | >55/50 | >55/50 | >55/50 |
| PDL (dB) | < 0.05 | < 0.1 | < 0.05 | < 0.1 |
| PMD (dB) | 0.2(0.05 available upon request) | |||
| Band Width (nm) | ±15 | ±30 | ||
| Operating Temperature (°C) | -20 ~ + 70 | |||
| Storage Temperature (°C) | -40 ~ +85 | |||
| Fiber Type | Corning SMF-28 | |||
| Fiber Length | 1m | |||
| Dimensions(mm) | Φ3.0×22 orΦ3.0×25 | |||
| Power Handing (mw) | 300 | |||
*At 23° C over bandwidth.
** Does not include connector, splice and fiber-end fresher losses.
*** Including PDL, operating wavelength range, -20° C to +70° C.
TGG Based 850nm Multimode Optical Isolator
| Parameters | Values |
|---|---|
| Central Wavelength(nm) | 850 |
| Operating Wavelength Range(nm) | ±15 |
| Typ. Peak Isolation(dB) | 25 |
| Min. Isolation in Band (at 25℃) (dB) | 22 |
| Typ. Insertion Loss (dB) | 1.2 |
| Max. Insertion Loss (at 25℃) (dB) | 1.5 |
| Max. Polarization Dependent Loss(dB) | 0.15 |
| Min. Return Loss(dB) | 45 |
| Max. Optical Power (Continuous Wave)(mW) | 500 |
| Fiber Type | 50/125,62.5/125 MM fiber |
| Tensile Load(N) | 5 |
| Operation Temperature(℃) | 0 ~ +50 |
| Storage Temperature Range(℃) | -20 ~ +75 |
Specifications may change without notice.
TGG-based 980nm Polarization Insensitive Optical Isolator
| Parameters | Values |
|---|---|
| Central Wavelength(nm) | 980 |
| Operating Wavelength Range(nm) | ±15 |
| Typ. Peak Isolation(dB) | 30 |
| Min. Isolation in Band (at 25℃) (dB) | 25 |
| Typ. Insertion Loss (dB) | 1.0 |
| Max. Insertion Loss (at 25℃) (dB) | 1.2 |
| Max. Polarization Dependent Loss(dB) | 0.15 |
| Min. Return Loss(dB) | 45 |
| Max. Optical Power (Continuous Wave)(mW) | 500 |
| Fiber Type | HI1060 |
| Tensile Load(N) | 5 |
| Operation Temperature(℃) | 0 ~ +50 |
| Storage Temperature Range(℃) | -20 ~ +75 |
Specifications may change without notice.

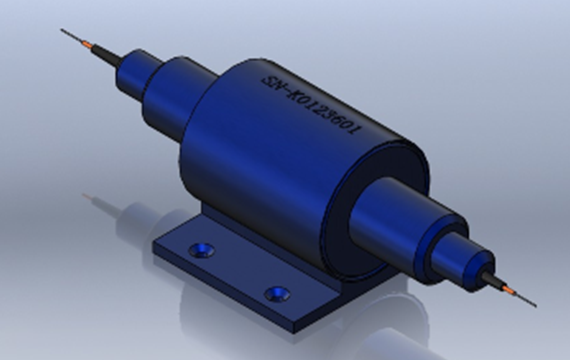

TGG Based 1030nm Polarization Insensitive Optical Isolator
| Parameters | Values |
|---|---|
| Central Wavelength(nm) | 1030 |
| Operating Wavelength Range(nm) | ±15 |
| Typ. Peak Isolation(dB) | 25 |
| Min. Isolation in Band (at 25℃) (dB) | 20 |
| Typ. Insertion Loss (dB) | 1.2 |
| Max. Insertion Loss (at 25℃) (dB) | 1.5 |
| Max. Polarization Dependent Loss(dB) | 0.15 |
| Min. Return Loss(dB) | 45 |
| Max. Optical Power (Continuous Wave)(mW) | 500 |
| Fiber Type | HI1060 |
| Tensile Load(N) | 5 |
| Operation Temperature(℃) | 0 ~ +50 |
| Storage Temperature Range(℃) | -20 ~ +75 |
Specifications may change without notice.
1064nm Polarization Insensitive Optical Isolator
| Parameter | 1064nm Single Stage Isolator | 1064nm Dual Stage Isolator | ||
|---|---|---|---|---|
| Gread | P Grade | A Grade | P Grade | A Grade |
| Operating Wavelength (nm) | 1064 | |||
| Band Width (nm) | ±15 | ±30 | ||
| Typical Peak Value Isolation (dB) | 40 | 38 | 55 | 50 |
| Isolation Minimum Value *(dB) | 30 | 28 | 45 | 40 |
| Insertion Loss Typical Value ** (dB) | 1.5 | 1.8 | 2.4 | 2.8 |
| Insertion Loss Maximum Value ** *(dB) | 2.0 | 2.2 | 3.4 | 4.2 |
| Return Loss (In/Out) (dB) | > 50/50 | > 50/50 | > 50/50 | > 50/50 |
| Polarization Dependent Loss (dB) | < 0.05 | < 0.1 | < 0.05 | < 0.1 |
| PMD (dB) | 0.2(0.05 available upon request) | |||
| Operating Temperature(°C) | -20 ~ + 70 | |||
| Storage Temperature (°C) | -40 ~ +85 | |||
| Fiber Type | Corning HI1060 | |||
| Fiber Length | 1 meter | |||
| Dimensions(mm) | Ø5.5xL35 | |||
| Power Handing (mw) | 300 | |||
*At 23° C over bandwidth.
** Does not include connector, splice and fiber-end fresher losses.
*** Including PDL, operating wavelength range, -20° C to +70° C.
Ultra Wideband Polarization Insensitive Isolator
| Type | C+L Band | S+C+L Band | |
|---|---|---|---|
| Operating Wavelength (nm) | 1530~1610 | 1460-1620 | |
| Peak Isolation (Typ.) (dB) | 58 | 58 | |
| Isolation (Min.) (dB) | >35 | >32 | |
| Insertion Loss (Typ.) (dB) | 0.4 | 0.6 | |
| Insertion Loss (Max.) (dB) | <0.7 | <0.9 | |
| Return Loss (In/Out) (dB) | >50/50 | >50/50 | |
| PDL (dB) | <0.1 | <0.1 | |
| Operating Temperature (° C) | -20 to + 60 | ||
| Storage Temperature (° C) | -40 to +85 | ||
| Fiber Type | Corning SMF-28 | ||
| Fiber Pigtail Length | 1 Meter Each End | ||
| Fiber Pigtail Type | 250um bare fiber or 900um tight buffer | ||
| Package Dimension (mm) | OD5.5 x L35 | ||
| Power Handling (mW) | 300 | ||
*At 23° C over bandwidth.
** Does not include connector, splice and fiber-end fresher losses.
*** Including PDL, operating wavelength range, -20° C to +70° C.
