Fused devices / 溶融型デバイス

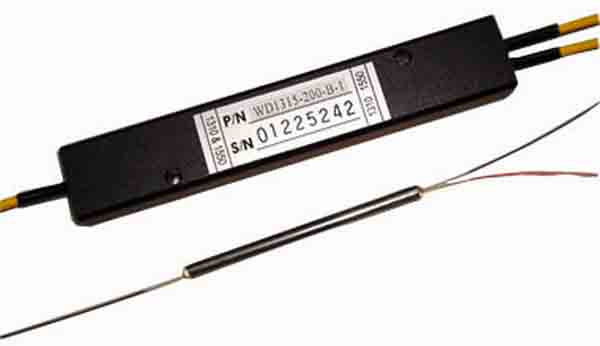

1310/1550nm Fused WDM
| Parameter | Specification | |||
|---|---|---|---|---|
| Type | WA | WB | WC | |
| Operating Wavelength (nm) | 1295 ~ 1325/1528 ~ 1565 | |||
| Grade | P | A | P | P |
| Max. Insertion Loss (dB) | 0.30 | 0.40 | 0.70 | 1.2 |
| Isolation (dB) | > 17 | > 16 | > 34 | > 45 |
| PDL (dB) | < 0.10 | < 0.10 | < 0.10 | < 0.15 |
| Return Loss(dB) | > 55 | |||
| Directivity (dB) | > 60 | |||
| Operating Temperature (°C) | -10 ~ +70(-40 ~ +85 available upon request) | |||
| Storage Temperature (°C) | -40 ~ +85 | |||
| Fiber Type | Single Mode Corning SMF-28 | |||
| Fiber Pigtail Length (m) | 1m or custom length | |||
| Port Configuration | 1×2 or 2×2 | |||
| Package Dimension (mm) | Package A, B, C, D | Package D | Package D | |
*The above specification is without connector.
**Other specifications can be made on customer request.
Package Information
| Package Type | A | B | C | D |
|---|---|---|---|---|
| Fiber Diameter | 250μm bare fiber | 900μm loose tube | 900μm/2mm/3mm loose tube | 900μm/2mm/3mm loose tube |
| Dimensions (Ф×L) | Ф3.0mm×54mm | Ф3.0mm×60mm | 90mm×20mm×9.5mm | 100mm×80mm×10..5mm |
Order information
FBT-①-②②-③③-④④④④-⑤-⑥-⑦⑦-⑧⑧-⑨⑨
| ① | ②② | ③③ | ④④④④ | ⑤ | ⑥ | ⑦⑦ | ⑧⑧ | ⑨⑨ |
|---|---|---|---|---|---|---|---|---|
| Grade | Wavelength | WDM configuration | Port | Package | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| P: Premium GradeA:A Grade |
35:1310/1550nm | WA:Type A WDM WB:Type B WDM WC:Type C WDM |
0102:1×2 0202:2×2 |
A:Package A B:Package B C:Package C D:Package D |
0:SMF-28 S:Special |
25:250um 90:900um 20:2.0mm 30:3.0mm XX: Others |
05:0.5m 10:1.0m 15:1.5m XX:Others |
00:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC ST: ST/PC XX: Others |

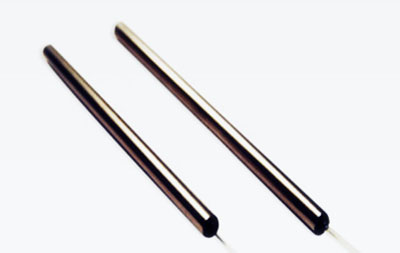

980/1550nm & 1480/1550nm Fused WDM
| Parameter | Specification | ||||
|---|---|---|---|---|---|
| Type | 980/1550nm WDM | 1480/1550nm WDM | |||
| Grade | S | P | A | P | A |
| Operating Wavelength (nm) | 980/1550+15 | 1480/1550+5 | |||
| Max. Insertion Loss (dB) | 0.15 | 0.20 | 0.30 | 0.30 | 0.40 |
| Isolation (dB) | > 20 | > 20 | > 20 | > 15 | > 13 |
| Polarization Sensitivity (dB) | < 0.05 | < 0.05 | < 0.05 | < 0.10 | < 0.10 |
| Directivity (dB) | > 55 | ||||
| Operating Temperature (°C) | -10 ~ +70(-40 ~ +85 available upon request) | ||||
| Storage Temperature (°C) | -40 ~ +85 | ||||
| Fiber Type | Corning HI 1060 or CS 980 | Corning SMF-28 | |||
| Fiber Pigtail Length (m) | 1m or custom length | ||||
| Port Configuration | 1×2 or 2×2 | ||||
*The above specification is without connector.
**Other specifications can be made on customer request.
Package Information
| Package Type | A | B | C |
|---|---|---|---|
| Fiber Diameter | 250μm bare fiber | 900μm loose tube | 900μm/2mm/3mm loose tube |
| Dimensions (Ф×L) | Ф3.0mm×54mm | Ф3.0mm×60mm | 90mm×20mm×9.5mm |
Order information
FBT-①-②②-③③③③-④-⑤-⑥⑥-⑦⑦-⑧⑧
| ① | ②② | ③③③③ | ④ | ⑤ | ⑥⑥ | ⑦⑦ | ⑧⑧ |
|---|---|---|---|---|---|---|---|
| Grade | Wavelength | Port | Package | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| S: S Grade P: P Grade A: A Grade |
95:980/1550nm 45:1480/1550nm |
0102:1×2 0202:2×2 |
A:Package A B:Package B C:Package C |
0:SMF-28 1:Corning HI 1060 2:CS 980 3:HI 1060Flex S:Special |
25:250um 90:900um 20:2.0mm 30:3.0mm XX: Others |
05:0.5m 10:1.0m 15:1.5m XX:Others |
00:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC ST: ST/PC XX: Others |

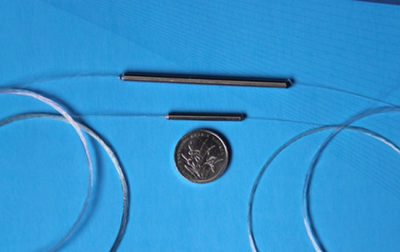

Mini Size Fused WDM
| Parameter | Specification | ||||
|---|---|---|---|---|---|
| Type | 980/1550nm WDM | 1480/1550nm WDM | |||
| Grade | S | P | A | P | A |
| Operating Wavelength (nm) | 980/1550+15 | 1480/1550+5 | |||
| Max. Insertion Loss (dB) | 0.15 | 0.20 | 0.30 | 0.30 | 0.40 |
| Isolation (dB) | > 20 | > 20 | > 18 | > 15 | > 13 |
| Polarization Sensitivity (dB) | < 0.05 | < 0.05 | < 0.05 | < 0.10 | < 0.10 |
| Directivity (dB) | > 55 | ||||
| Operating Temperature (°C) | -10 ~ +70(-40 ~ +85 available upon request) | ||||
| Storage Temperature (°C) | -40 ~ +85 | ||||
| Fiber Type | Corning HI 1060 or CS 980 | Corning SMF-28 | |||
| Fiber Pigtail Length (m) | 1m or custom length | ||||
| Package Dimension(mm) | A:Ф2.4×25; B:Ф2.4×30; C:Ф3.0×35 | ||||
| Port Configuration | 1×2 or 2×2 | ||||
*The above specification is without connector.
**Other specifications can be made on customer request.
Order information
FBT-①-②②-③③③③-④-⑤-⑥⑥-⑦⑦-⑧⑧
| ① | ②② | ③③③③ | ④ | ⑤ | ⑥⑥ | ⑦⑦ | ⑧⑧ |
|---|---|---|---|---|---|---|---|
| Grade | Wavelength | Port | Package | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| S: S Grade P: P Grade A:A Grade |
95:980/1550nm 45:1480/1550nm |
0102:1×2 0202:2×2 |
A:Package A B:Package B C:Package C |
0:SMF-28 1:Corning HI 1060 2:CS 980 3:HI 1060Flex S:Special |
25:250um 90:900um 20:2.0mm 30:3.0mm XX: Others |
05:0.5m 10:1.0m 15:1.5m XX:Others |
00:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC ST: ST/PC XX: Others |
